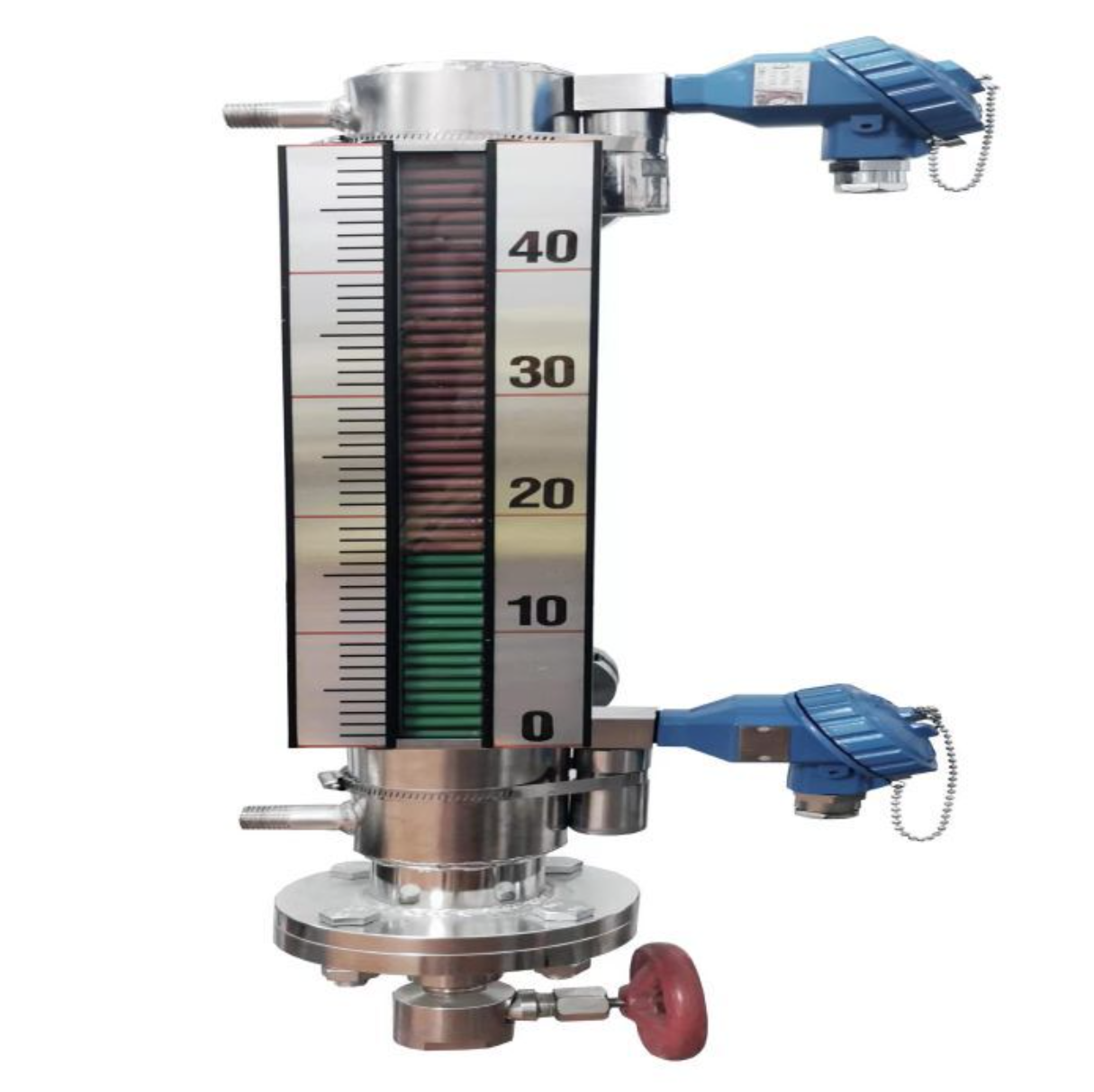

The UFZ type buoy flap level gauge is a simple measuring instrument. It is applicable to tanks and vessels containing corrosive media in the petrochemical industry, flat-bottom conical cover and dome roof containers in oilfields and oil depots, as well as water towers and water tanks in general industrial and civil buildings. It effectively solves the difficulties of manual liquid level measurement.
Technical Parameters
Measuring range: 0～20 m (customizable upon user requirements)
Indication accuracy: ±20 mm
Working pressure: Atmospheric pressure or ±200 mmH₂O
Medium temperature: -30 ℃～300 ℃
Medium density: ≥0.45 g/cm³
Buoy outer diameter: Φ133 mm
Verticality of guide steel wire: ≤±5 mm
Wetted material: Stainless steel
Guide pipe transverse span: L = 750～1500 mm (optional);(L refers to the distance between the main pipe axis and the vertical centerline of the buoy)
Process connection: Top mounting on vessel, flange connection
