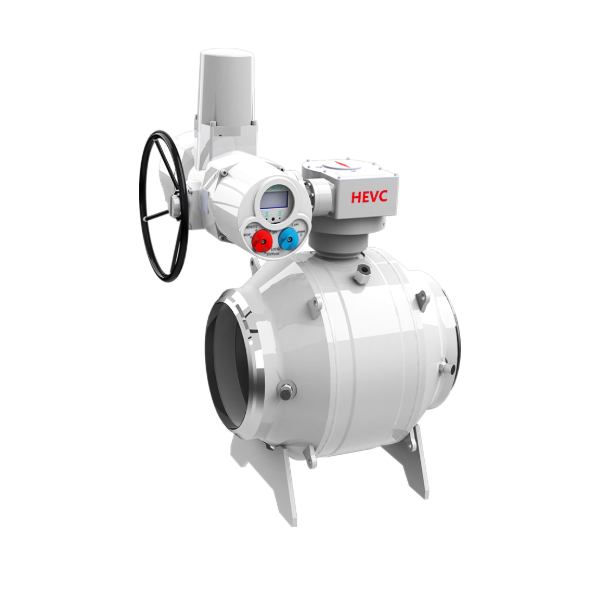

Fully Welded Trunnion Ball Valve

HEVC fully welded trunnion ball valves combine a welded pressure-containing body with trunnion-supported quarter-turn operation for pipeline isolation. Carbon-steel construction and buried or above-ground installation configurations support gas and liquid transmission lines, while manual, powered and gas-over-oil actuation options connect the valve to station operating requirements.
Technical Specifications Product Scope
Size 2–56 in. (DN50–DN1400)
Pressure Rating ASME Class 150–1500 (PN16–PN250)
Temperature -46 to 200°C
Body Materials Carbon steel
Standards API 6D
Ends Flanged or welded
Actuation Manual, pneumatic, electric, electro-hydraulic or gas-over-oil
Download
View all downloads
  • TW fully welded trunnion ball valve

Description

Design & Construction

  • Fully welded body

    Welded body construction provides the pressure-containing enclosure for pipeline isolation.

  • Trunnion-supported ball

    The supported ball arrangement provides quarter-turn shutoff for large-bore pipeline duties.

  • Installation and operating arrangements

    Buried and above-ground configurations accommodate transmission lines and station installations, with operating-unit options for local or remote operation.

Typical Duty / Applications

  • Natural-gas transmission

    Line and station isolation in natural-gas transmission systems.

  • Crude oil and refined products

    Shutoff in liquid transmission pipelines.

  • Buried lines and stations

    Isolation points at compressor, metering and pipeline stations.

Testing & Documentation

  • Inspection and testing

    Material verification, shell-pressure testing, seat-leakage testing and operating checks form the inspection scope.

  • Technical documents

    Valve drawings, datasheets, material records, inspection reports and operating-unit documentation support technical coordination.
