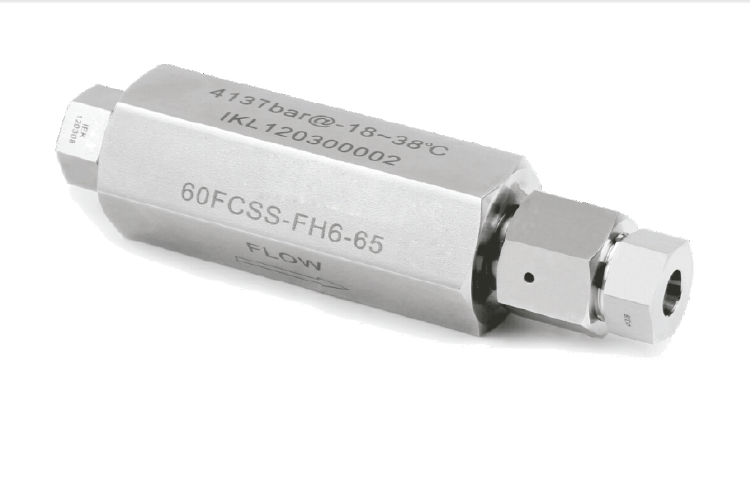

High Pressure Filters

Dual Disc-Type Filters

1. Suitable for chemical processing, aerospace, nuclear power, and other industrial applications.
2. The upstream filter element removes larger contaminant particles, while the downstream element removes other contaminant particles.
3. Filter elements are easy to replace.
4. Standard downstream/upstream filter element nominal pore sizes are 5/10, 10/35, and 35/65 μm; other size combinations are available upon request.
5. The differential pressure under flow conditions must not exceed 1000 psig (69 bar).

Cup-Type Filters

1. Filter elements can be replaced quickly and easily.
2. Recommended for high-pressure systems requiring both large filtration area and high flow rates. Widely used in chemical processing and industrial fields. The effective filtration area of the cup-type filter element is six times that of the dual disc-type.
3. Filter element nominal pore sizes: 5, 35, and 65 μm.
4. The differential pressure under flow conditions must not exceed 1000 psig (69 bar).

Specifications

15FD, 15FC Series Filters

1. Connections: 1/4", 3/8", and 1/2" compression fittings
2. Body material: 316 stainless steel
3. Orifice sizes:

• 15FD Series: 0.125" and 0.188"
• 15FC Series: 0.125", 0.312", and 0.438"
  4. Maximum working pressure: 15,000 psig (1034 bar)
  5. Working temperature: -60 °F to 660 °F (-50 °C to 350 °C)

20FD, 20FC Series Filters

1. Connections:

• 20FD Series: 9/16" tube fittings
• 20FC Series: 1/4", 3/8", 9/16", and 1" tube fittings
  2. Body material: 316 stainless steel
  3. Orifice sizes:
• 20FD Series: 0.312"
• 20FC Series: 0.125", 0.218", 0.359", and 0.688"
  4. Maximum working pressure: 20,000 psig (1379 bar)
  5. Working temperature: -60 °F to 660 °F (-50 °C to 350 °C)

60FD, 60FC Series Filters

1. Connections: 1/4", 3/8", and 9/16" tube fittings
2. Body material: 316 stainless steel
3. Orifice sizes:

• 60FD Series: 0.094", 0.125", and 0.187"
• 60FC Series: 0.094", 0.125", and 0.187"
  4. Maximum working pressure: 60,000 psig (4137 bar)
  5. Working temperature: -60 °F to 660 °F (-50 °C to 350 °C)
