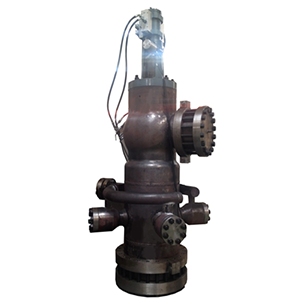

HP / LP Turbine Bypass Valves

HEVC HP / LP turbine bypass valves manage steam during startup, shutdown, turbine trips and load changes. Pressure-reduction trim and desuperheating equipment work together to control downstream steam conditions. Cage, sleeve and multistage arrangements distribute pressure drop, while spray-water and atomizing-nozzle systems support temperature control. Actuator response and plant control interfaces complete the bypass package.
Technical Specifications Product Scope
Service HP / LP turbine bypass duty
Referenced project conditions 650°C / 34 MPa and 625°C / 38.5 MPa
Download
View all downloads
  • HP / LP Turbine Bypass Valves,Honyen,HP / LP Turbine Bypass Valves | Honyen Power Generation
  • HP / LP Turbine Bypass Valves,Honyen,HP / LP Turbine Bypass Valves | Steam Conditioning | Honyen

Description

Design & Construction

  • Pressure-reduction trim

    Cage, sleeve and multistage arrangements distribute pressure drop through the valve configuration.

  • Desuperheating equipment

    Spray-water and atomizing-nozzle arrangements control downstream steam temperature.

  • Integrated operating package

    Valve capacity, actuator response and control interfaces are coordinated for startup, shutdown, turbine-trip and load-transition sequences.

Typical Duty / Applications

  • HP Turbine Bypass

    Pressure reduction and desuperheating between superheater and reheater systems.

  • LP Turbine Bypass

    Steam conditioning toward the receiving low-pressure system.

  • Startup, Trip & Load Changes

    Steam routing during startup, shutdown, turbine trips and load transitions.

Reference Configurations

Configuration Inlet / Outlet Size Body Material Inlet / Outlet Design Pressure (MPa) Inlet / Outlet Design Temperature (°C)
HP bypass · WY964Y-P61.5-330V DN350 / DN550 F92 28.35 / 7.34 610 / 400
LP bypass · WY964Y-P62.8-74.5V DN450 / DN900 F92 7.33 / 1.6 618 / 250

Testing & Documentation

  • Steam-conditioning performance

    Required pressure reduction, downstream temperature and actuator response define the operating-performance scope.

  • Inspection and testing

    Pressure, leakage and control-interface checks form part of the specified valve-package inspection.

  • Technical documentation

    Available project documentation can include valve drawings, model-specific datasheets, material records, inspection and test plans, test reports and operating instructions.
