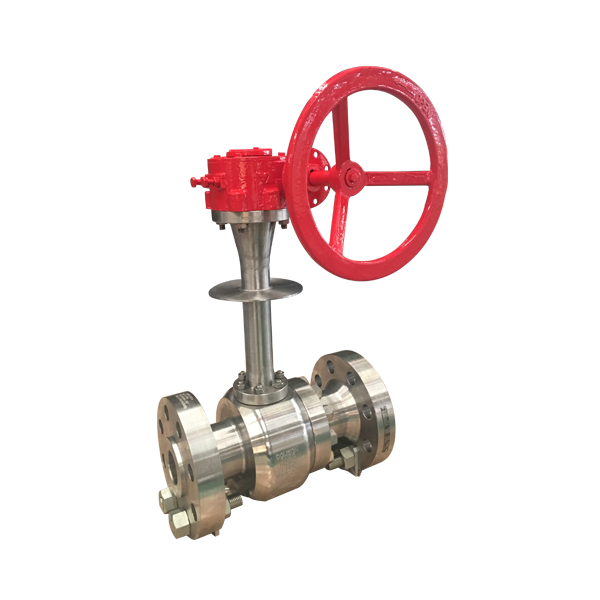

Cryogenic Side-Entry Floating Ball Valve

HEVC cryogenic side-entry floating ball valves combine austenitic stainless-steel construction with lip-seal support for thermal cycling. The floating-ball arrangement provides quarter-turn isolation for low-temperature process and transfer lines, with end-connection and actuator options for LNG equipment and cryogenic loading systems.
Technical Specifications Product Scope
Size 2–24 in. (DN50–DN600)
Pressure Rating ASME Class 150–900 (PN16–PN150)
Temperature Down to -196°C
Body Materials Austenitic stainless steel
Ends RF, BW or RTJ
Actuation Manual, pneumatic, electric or hydraulic
Download
View all downloads
  • cryogenic side-entry floating ball valve for LNG

Description

Design & Construction

  • Side-entry floating ball

    The side-entry body houses a floating-ball shutoff arrangement.

  • Sealing through thermal cycles

    Lip-seal support addresses sealing requirements during low-temperature operation and thermal transitions.

  • Cryogenic body construction

    Austenitic stainless steel provides the body-material platform for low-temperature service.

Typical Duty / Applications

  • LNG liquefaction and storage

    Process and storage-line isolation.

  • Cryogenic loading

    Shutoff in low-temperature transfer and loading lines.

  • LPG and air separation

    Isolation in LPG and cryogenic air-separation piping.

Testing & Documentation

  • Inspection and testing

    Material verification, shell-pressure testing, seat-leakage testing and operating checks form the inspection scope.

  • Technical documents

    Valve drawings, datasheets, material records, inspection reports and operating-unit documentation support technical coordination.
