Triple-Offset Butterfly Valves for Oil & Gas

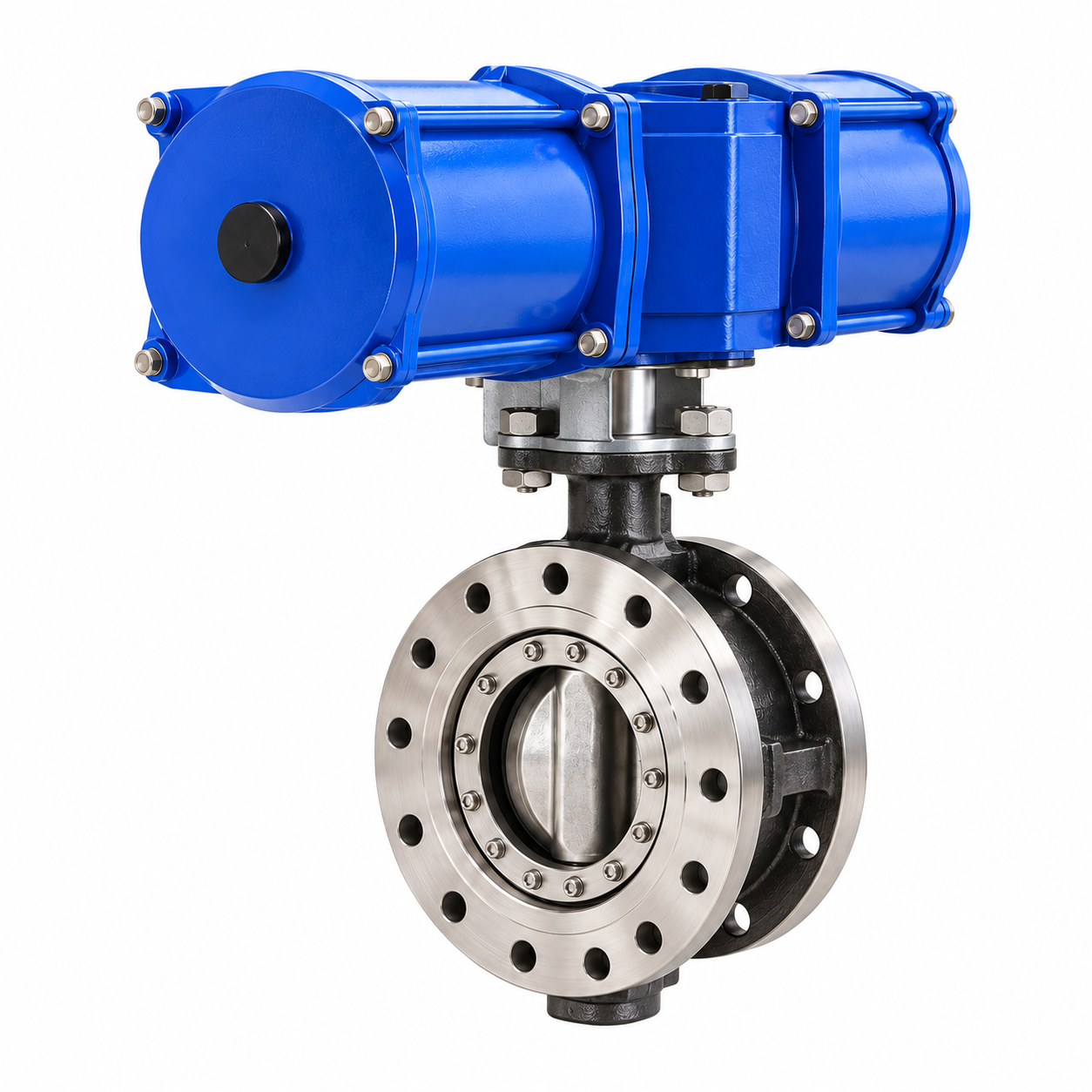

HEVC triple-offset butterfly valves provide quarter-turn isolation for large-bore refinery, petrochemical and utility piping. The offset-disc arrangement combines a compact butterfly-valve format with flanged or wafer installation options, while manual, electric and pneumatic operating arrangements support plant isolation duties.
Technical Specifications Product Scope
Size DN80–DN2000 / NPS 3–80
Pressure Rating PN0.6–PN160 / Class 150–900
Standards NB/T 47044; ASME B16.34
Ends Flanged / wafer
Body Materials Carbon steel / alloy steel / stainless steel
Actuation Manual / electric / pneumatic
Download
View all downloads
  • Triple-Offset Butterfly Valves for Oil & Gas,Honyen,Triple-Offset Butterfly Valves for Oil & Gas | Honyen

Description

Design & Construction

  • Triple-offset arrangement

    Offset disc and seat geometry provides the closing arrangement for the butterfly-valve platform.

  • Large-bore butterfly construction

    The rotating disc provides a quarter-turn isolation option for process and utility lines.

  • Installation arrangements

    Flanged and wafer configurations provide alternatives for piping connections and installation space.

Typical Duty / Applications

  • Refinery and petrochemical isolation

    Shutoff in process piping and plant isolation points.

  • Cooling water and utilities

    Large-bore isolation in facility utility systems.

  • Steam and hot-process lines

    Isolation duties in steam and hot-process piping.

Testing & Documentation

  • Inspection and testing

    Material verification, shell-pressure testing, seat-leakage testing and operating checks form the inspection scope.

  • Technical documents

    Valve drawings, datasheets, material records, inspection reports and operating-unit documentation support technical coordination.
