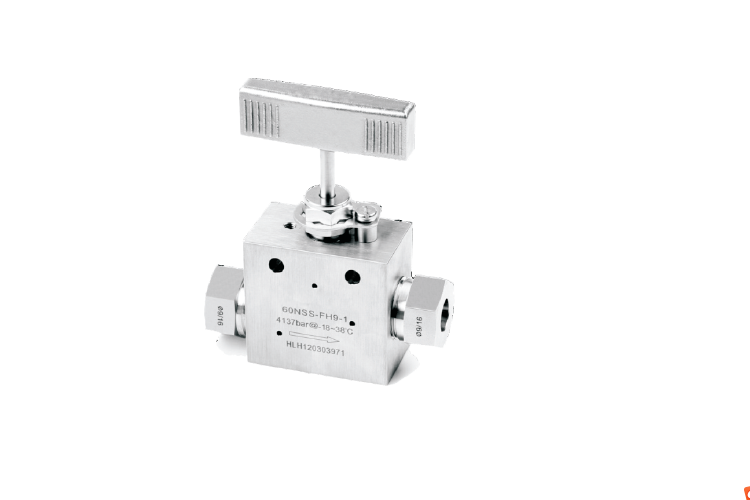

High Pressure Needle Valves

15N Series Needle Valves

• End connections: 1/4", 3/8" and 1/2" tube fittings
• Body material: 316 SS
• Orifice sizes: 0.188", 0.25" and 0.375"
• Maximum working Pressures: 15000 psig (1034 bar)
• Working temperature: 0°F to 1200°F (-18°C to 649°C)

20N Series Needle Valves

• End connections: 1/4", 3/8", 9/16", 3/4" and 1" tube fittings
• Body material: 316 SS
• Orifice sizes: 0.125", 0.219", 0.312", 0.438" and 0.562"
• Maximum working Pressures: 20000 psig (1379 bar)
• Working temperature: 0°F to 1200°F (-18°C to 649°C)

30N Series Needle Valves

• End connections: 1/4", 3/8" and 9/16" tube fittings
• Body material: 316 SS
• Orifice sizes: 0.094" and 0.125"
• Maximum working Pressures: 30000 psig (2068 bar)
• Working temperature: 0°F to 1200°F (-18°C to 649°C)

60N Series Needle Valves

• End connections: 1/4", 3/8", 9/16" tube fittings
• Body material: 316 SS
• Orifice sizes: 0.062" and 0.078"
• Maximum working Pressures: 60000 psig (4137 bar)
• Working temperature: 0°F to 1200°F (-18°C to 649°C)
