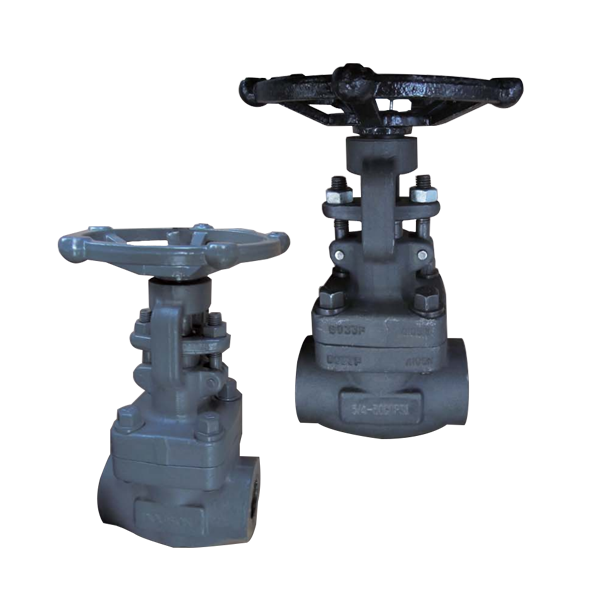

• G Series API 6A forged steel wedge gate valve
  • G Series API 6A forged steel wedge gate valve

API 6A Wedge Gate Valve

HEVC G forged steel wedge gate valves for API 6A wellhead and upstream isolation, with gate, seat and trim selected for project service conditions.
Technical Specifications Product Scope
Valve Type Wedge Gate Valve
Body Materials Forged-steel construction with trim selected for project requirements
Standards API 6A and project-specific requirements
Download
View all downloads
  • G Series API 6A forged steel wedge gate valve

Description

Design & Construction

  • Wedge gate and seat arrangement

    The wedge-gate closure provides on/off isolation through the gate and seat interface.

  • Forged-steel construction

    Forged-steel body construction houses the gate, seats and trim.

Typical Duty / Applications

  • Wellhead isolation

    Shutoff points in wellhead equipment and associated piping.

  • Production facilities

    On/off isolation in oil and gas production systems.

  • High-pressure shutoff

    Isolation of high-pressure upstream flow paths.

Testing & Documentation

  • Inspection and testing

    Material verification, shell-pressure testing, seat-leakage testing and operating checks form the inspection scope.

  • Technical documents

    Valve drawings, datasheets, material records, inspection reports and operating-unit documentation support technical coordination.
