Hoses

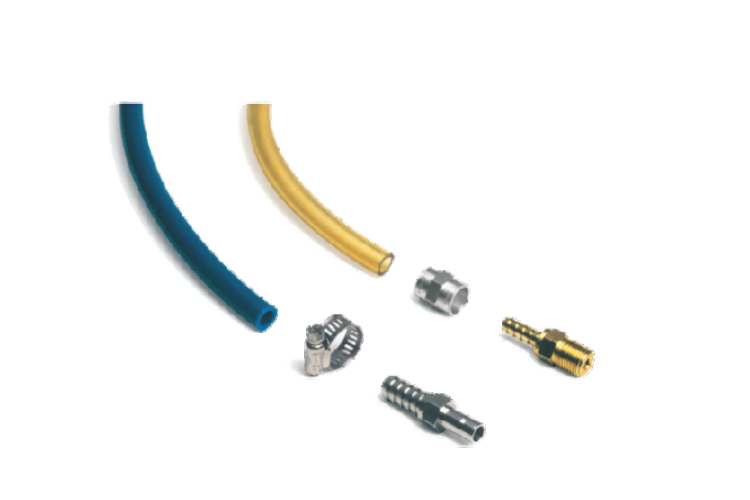

HC Series

1. For plastic or rubber hoses.
2. Working pressure and temperature ratings exceed those of the corresponding hose.
3. Materials: Stainless steel, brass, and other options available.
4. Barbed neck securely grips the inner diameter of the hose.
5. Reusable hose fittings.

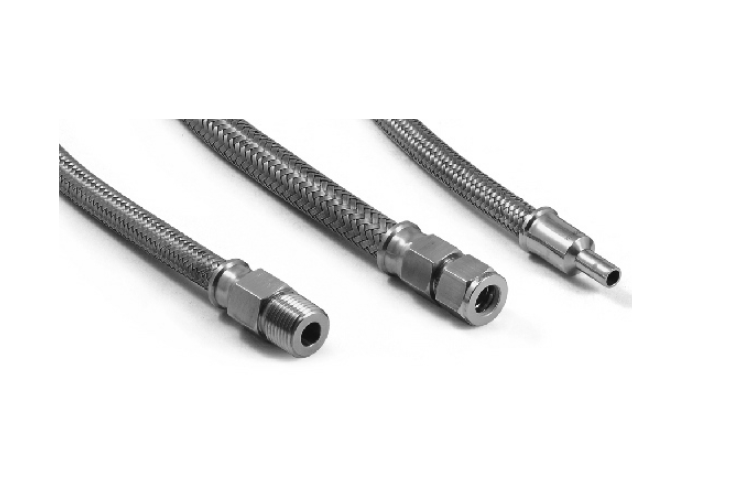

MH, MM Series

1. Corrugated hose and end connection material: 316 stainless steel
2. Outer metal braid material: 304 stainless steel
3. Maximum working pressure: 213 bar (3100 psig)
4. Hose sizes: 1/4" to 2"
5. Temperature range: -200 °C to 426 °C (-325 °F to 800 °F)
6. End connections:

• 1/4" to 1" NPT
• 1/4" to 1", 6 mm to 22 mm double ferrule
  7. Hose and fittings are welded together for secure and reliable connection
  8. Standard or custom lengths available

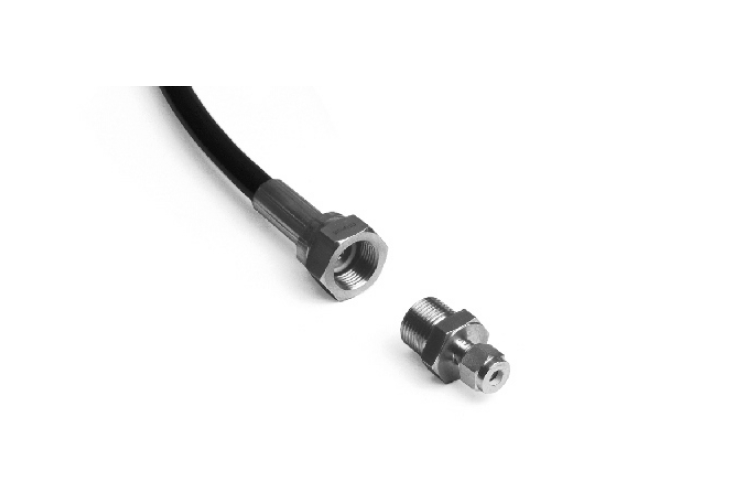

MP Series

1. Outer cover: Weather-resistant, abrasion-resistant, and oil-resistant synthetic rubber
2. Reinforcement: One layer of high-strength synthetic fiber braid; special braid angle provides maximum grip on the fitting
3. Inner tube: High oil-resistant rubber
4. Colors available: Blue, black, green, gray, red, yellow, etc.
5. Working pressure: 20.6 bar (300 psig)
6. Hose sizes: 1/4" to 3/4"
7. Temperature range: -40 °C to 93 °C (-40 °F to 200 °F)
8. End connections:
9. 1/4" to 3/4" NPT
10. 1/4" to 3/4", 6 mm to 18 mm double ferrule
11. Fitting materials: Stainless steel or brass options available
12. Reusable fittings
13. Standard or custom lengths available

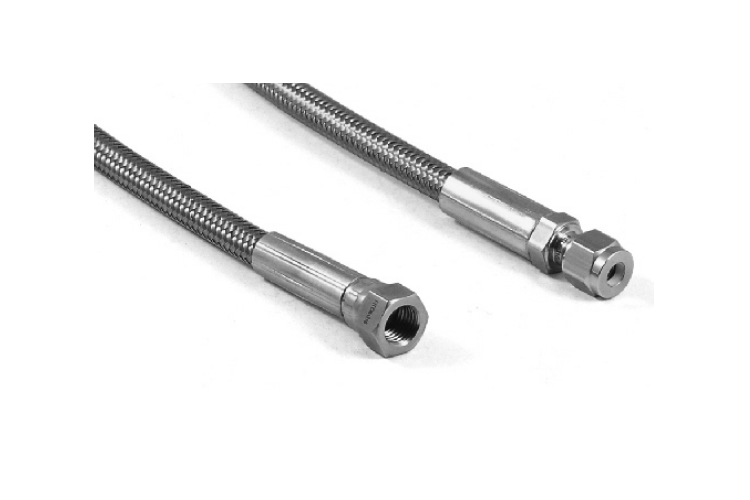

PS Series (High Pressure), PLS Series (Low Pressure)

1. Lightweight construction for easy transportation and installation.
2. Inner tube material: Smooth pure PTFE.
3. Outer metal braid material: 304 stainless steel.
4. Maximum working pressure: 206 bar (3000 psig).
5. Hose sizes: 1/4" to 1".
6. End connections:

• 1/8" to 1" NPT
• 1/8" to 1", 6 mm to 25 mm double ferrule
  7. Standard or custom lengths available.
  8. Working temperature: -53 °C to 230 °C (-65 °F to 450 °F).

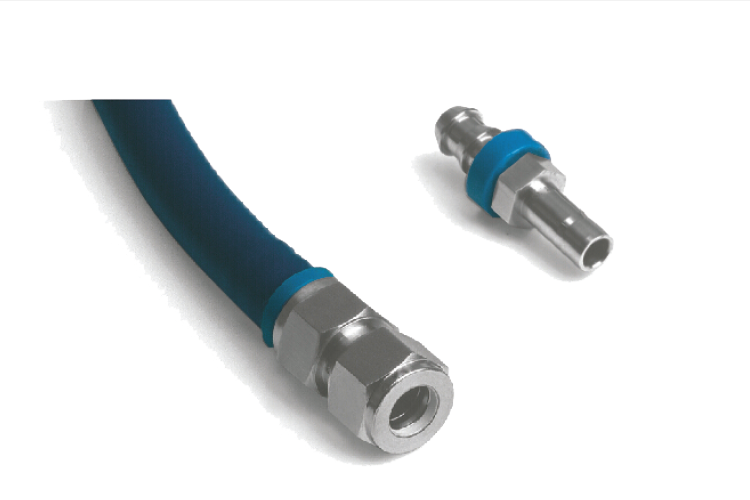

TH Series

1. Outer cover: Oil-resistant, weather-resistant, and abrasion-resistant polyurethane
2. Reinforcement: High-strength synthetic fiber braided mesh
3. Inner tube: Nylon
4. Maximum working pressure: 345 bar (5000 psig)
5. Hose sizes: 3/16" to 1"
6. Temperature range: -40 °C to 93 °C
7. End connection sizes and types:

• 1/4" to 1" NPT
• 1/4" to 1", 6 mm to 22 mm double ferrule

8、End connection materials: Stainless steel, brass, carbon steel, and other options available

9、Standard or custom lengths available
