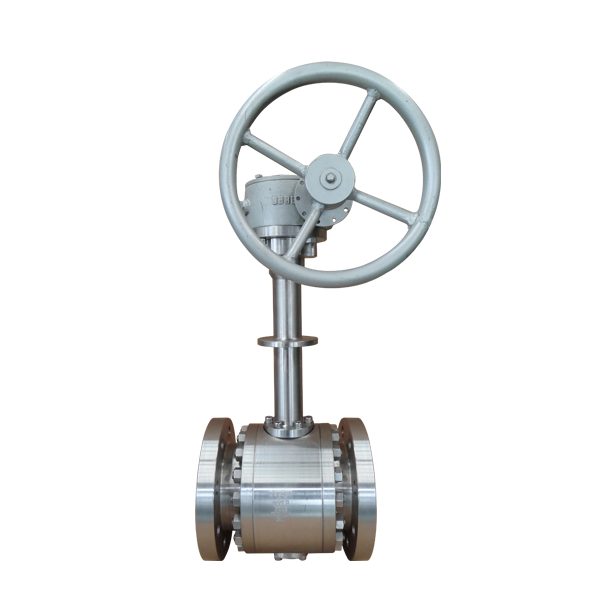

Cryogenic Side-Entry Trunnion Ball Valve

No.CRYO-TB
HEVC cryogenic side-entry trunnion ball valves combine a supported ball with austenitic stainless-steel construction for low-temperature isolation. The side-entry arrangement serves LNG liquefaction, storage and loading lines, with manual or powered operation and connection options for integration into cryogenic piping systems.
Technical Specifications Product Scope
Size 2–24 in. (DN50–DN600)
Pressure Rating ASME Class 150–900 (PN16–PN150)
Temperature Down to -196°C
Body Materials Austenitic stainless steel
Ends RF, BW or RTJ
Actuation Manual, pneumatic, electric or hydraulic
Download
View all downloads
  • cryogenic side-entry trunnion ball valve for LNG

Description

Design & Construction

  • Trunnion-mounted ball

    The supported ball arrangement provides quarter-turn isolation in cryogenic piping.

  • Side-entry construction

    The body assembly houses the ball and seat components in a side-entry arrangement.

  • Low-temperature material platform

    Austenitic stainless-steel construction supports the cryogenic valve configuration.

Typical Duty / Applications

  • LNG liquefaction

    Isolation of low-temperature process lines.

  • LNG storage and loading

    Shutoff in storage, transfer and loading systems.

  • LPG and air separation

    Isolation in low-temperature LPG and air-separation circuits.

Testing & Documentation

  • Inspection and testing

    Material verification, shell-pressure testing, seat-leakage testing and operating checks form the inspection scope.

  • Technical documents

    Valve drawings, datasheets, material records, inspection reports and operating-unit documentation support technical coordination.
