High-Pressure Gate Valves

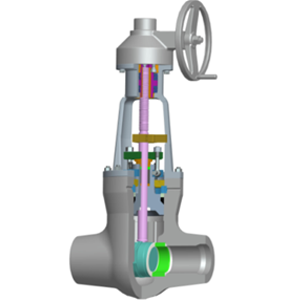

HEVC high-pressure gate valves provide isolation for main-steam, reheat-steam and boiler-feedwater piping. Flexible-wedge, wedge double-disc and parallel double-disc designs offer different disc arrangements for demanding steam and water service. Stellite hardfacing supports resistance to seating-surface wear and erosion, while cast and integral-forged body options extend the range of available constructions.
Technical Specifications Product Scope
Size DN50–DN900; NPS 2–36
Pressure Rating PN16–PN420; P54 100V–P60 300V; Class 150–4500 Special
Standards NB/T 47044; ASME B16.34
Structure flexible single wedge / wedge double-disc / parallel double-disc
Actuation manual / electric / pneumatic
Ends flanged / welded
Body materials carbon steel / alloy steel / stainless steel
Download
View all downloads
  • HEVC high-pressure gate valve for power generation service
  • High-Pressure Gate Valves,Honyen,High-Pressure Gate Valves | Main Steam & Feedwater | Honyen

Description

Design & Construction

  • Flexible-wedge construction

    The Z(9)60Y family uses a flexible single-disc arrangement.

  • Double-disc arrangements

    Z(9)62Y configurations use wedge double discs, while Z(9)64Y configurations use parallel double discs.

  • Hardened sealing surfaces

    Stellite hardfacing and controlled welding processes support resistance to wear and erosion at the seating surfaces.

  • Cast and forged bodies

    Available constructions include cast bodies and DHZ(9)62Y integral-forged configurations.

Typical Duty / Applications

  • Main & Reheat Steam

    Isolation in main-steam and reheat-steam piping.

  • Boiler Feedwater

    Isolation in main-feedwater, feedwater-bypass and startup-water circuits.

  • Boiler & Auxiliary Piping

    Steam and water shutoff across boiler and balance-of-plant systems.

Project References

Project Reference – Generating Units Selected Specification / Material Design Pressure (MPa) Design Temperature (°C)
2 x 1000MW ultra-supercritical DN250; PN16I; WC6 9.144 424.9
2 x 660MW ultra-supercritical DN550; PN420; WB36 31.8 310
2 x 1100MW ultra-supercritical DN80; Class2800; WB36 35.8 360

Testing & Documentation

  • Inspection and testing

    Shell-pressure testing, seat-leakage testing and specified inspections address the selected valve construction.

  • Technical documentation

    Available project documentation can include valve drawings, model-specific datasheets, material records, inspection and test plans, test reports and operating instructions.
