High Pressure Fittings

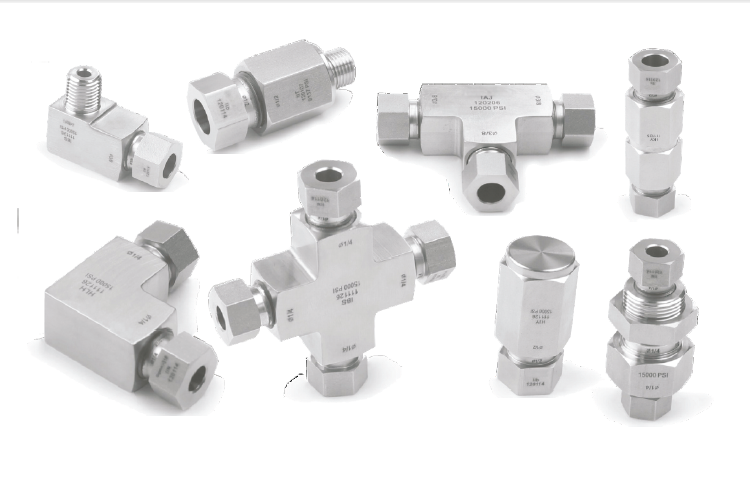

15 Series Tube Fittings

1. Pressure rating up to 15,000 psig (1034 bar).
2. Easy installation and removal.
3. Each fitting is marked with size, material, and heat lot number.
4. Smooth arc connections in elbow channels ensure steady fluid flow.
5. Nut threads are coated with molybdenum disulfide lubricant to reduce friction coefficient.
6. Hardened and polished threads extend fitting service life and prevent galling

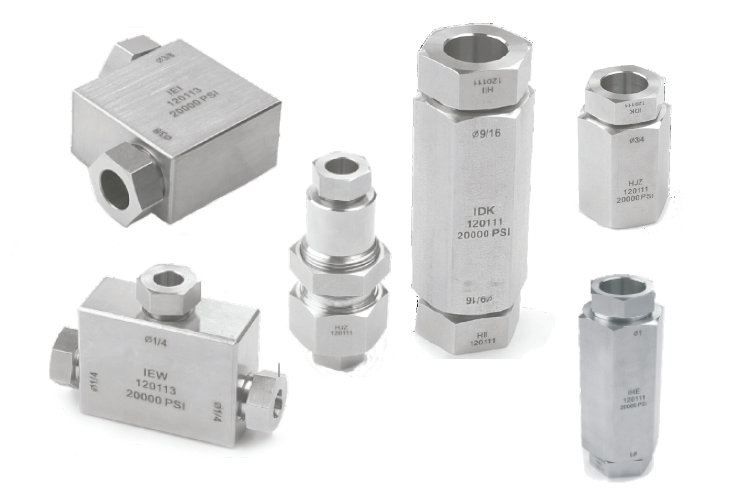

20 Series Tube Fittings

1. Pressure rating up to 20,000 psig (1379 bar).
2. Cone and thread connection.
3. Metal-to-metal sealing ensures zero leakage from high vacuum to high pressure.
4. Anti-vibration connections available.
5. Easy installation and removal.
6. Each fitting is marked with size, material, and heat lot numbe

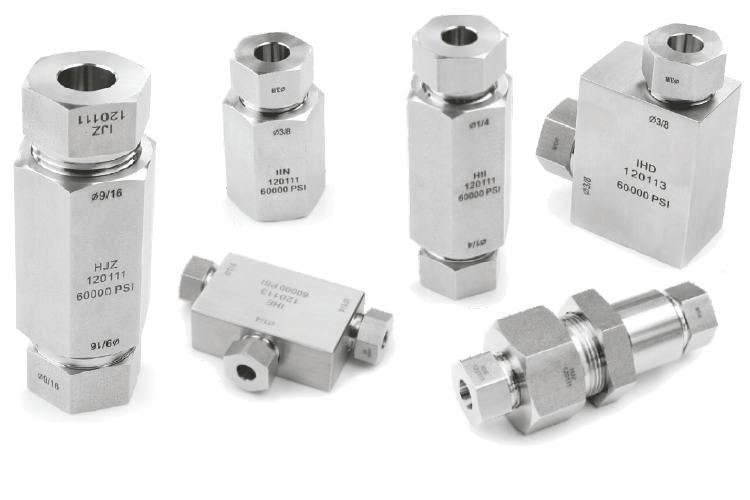

Series 60 Tube Fittings

1. Pressure rating up to 60,000 psig (4137 bar).
2. Cone and thread connection.
3. Metal-to-metal sealing ensures zero leakage from high vacuum to high pressure.
4. Anti-vibration connections available.
5. Easy installation and removal.
6. Each fitting is marked with size, material, and heat lot number.
