Power Generation Valves for Steam, Feedwater & Turbine Systems

APPLICATION SYSTEMS
Main SteamReheat SteamBoiler FeedwaterTurbine BypassExtraction SteamCooling Water & Utilities

HIGH-TEMPERATURE DEVELOPMENT

630°C Proven

650°C-Class Next

Proven ultra-supercritical project experience provides the foundation for next-generation high-temperature valve development.

630°C DOUBLE-REHEAT DUTY

WORLD’S FIRST COMMERCIALLY OPERATING 1,000 MW-CLASS 630°C DOUBLE-REHEAT ULTRA-SUPERCRITICAL UNIT

Critical scope included boiler safety valves, power control and relief valves, and steam-turbine bypass valves. The figures below describe the generating unit and its published operating conditions.

Datang Yuncheng Project1,000 MW unit capacity631°C reheat steam35.5 MPa main steam50.05% efficiency
650°C-CLASS DEVELOPMENT

WORLD’S FIRST 1,000 MW-CLASS 650°C HIGH-EFFICIENCY DEMONSTRATION UNIT

Advanced materials, sealing technology and controlled manufacturing processes are being developed for 650°C-class high-efficiency generating units.

Huaneng Yuhuan Project650°C-class targetHigh-temperature sealingAdvanced material control

OUR POWER GENERATION VALVE PORTFOLIO

Isolation & Non-Return Valves

Main steam · Reheat steam · Feedwater · Boiler isolation

HIGH-PRESSURE ISOLATION

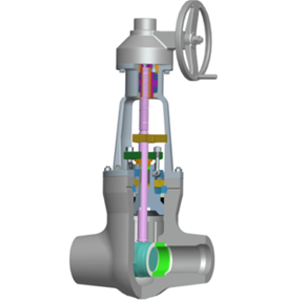

High-Pressure Gate Valves

  • Main-steam and reheat-steam isolation
  • Feedwater and boiler-system isolation
  • Flexible wedge, wedge double-disc or parallel double-disc
  • Hardened sealing surfaces
High-Pressure Gate ValvesDN50–DN900 / NPS 2–36
Class 150–4500 Special
View product details →
CONTROLLED SHUTOFF

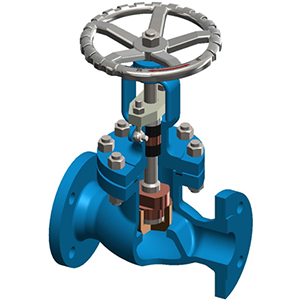

High-Pressure Globe Valves

  • High-temperature steam and feedwater shutoff
  • Throttling selected for the required pressure drop
  • Y-pattern or T-pattern construction
  • Wear- and erosion-resistant sealing surfaces
High-Pressure Globe ValvesDN50–DN400 / NPS 2–16
Class 150–4500 Special
View product details →
REVERSE-FLOW PROTECTION

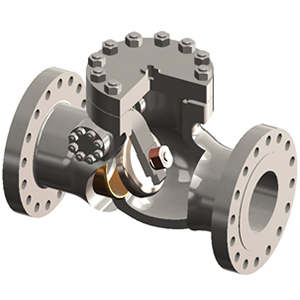

High-Pressure Check Valves

  • Feedwater and pump-discharge protection
  • Reverse-flow protection for critical steam lines
  • Swing, lift or axial-flow configurations
  • Atmospheric-exhaust configurations
High-Pressure Check ValvesDN50–DN400 / NPS 2–16
Class 150–4500 Special
View product details →

Control & Steam Management

Steam and feedwater control · Turbine bypass · Heater bypass

SEVERE-SERVICE CONTROL

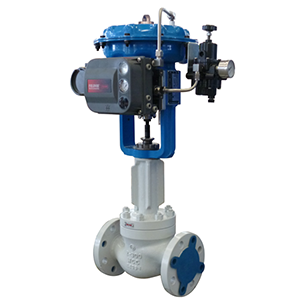

Severe-Service Control Valves

  • Steam and feedwater flow control
  • Severe pressure-drop, cavitation and erosion duties
  • Plunger, sleeve or labyrinth trim options
  • Anti-cavitation and anti-erosion design
Severe-Service Control ValvesDN40–DN250
Class 150–4500
View product details →
TURBINE BYPASS 650°C PROJECT REFERENCE

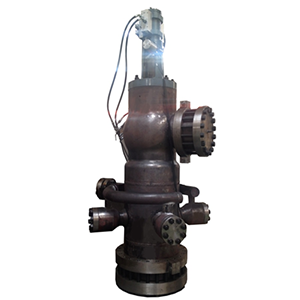

HP / LP Turbine Bypass Valves

  • Startup and shutdown steam management
  • Turbine-trip and load-transition duties
  • Multi-stage pressure reduction
  • Desuperheating and thermal-cycling design
HP / LP Turbine Bypass ValvesProject evidence: 650°C / 34 MPa · 625°C / 38.5 MPaView product details →
HP HEATER BYPASS

HP Heater Three-Way Bypass Valves

  • High-pressure feedwater-heater isolation
  • Feedwater routing and bypass service
  • Inlet and outlet valve arrangements
  • Actuated bypass operation
HP Heater Three-Way Bypass ValvesDN150–DN600 · Class 1500–3000
Configuration-specific ratings
View product details →

Pressure & Turbine Protection

Boiler overpressure protection · Controlled steam relief · Turbine protection

BOILER OVERPRESSURE PROTECTION

Boiler Safety Valves

  • Boiler, superheater and reheater overpressure protection
  • Engineered sealing for demanding steam service
  • Coordinated set-pressure selection
  • Selection by required relieving capacity
Boiler Safety ValvesDN15–DN400 · Class 150–4500SPL
Configuration-specific ratings
View product details →
CONTROLLED STEAM RELIEF

Power-Actuated Relief Valves / PCV

  • Controlled steam discharge
  • Superheater-outlet and main-steam pressure management
  • Remote and local operation
  • Protection logic configured for the project
Power-Actuated Relief Valves / PCVExample: DN65 · Class 4500SPL
Final selection by project conditions
View product details →
TURBINE PROTECTION

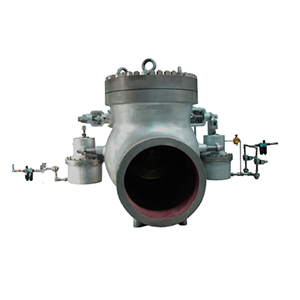

Extraction Steam Check Valves

  • Reverse-flow protection for extraction-steam lines
  • Protection for feedwater-heater systems
  • Fast-closing duty
  • Configured actuator logic and fail action
Extraction Steam Check ValvesSize, pressure and closing response: project-configuredView product details →

Specialized Isolation & Testing

Cooling water · Plant utilities · Hydrostatic test isolation

LARGE-BORE ISOLATION

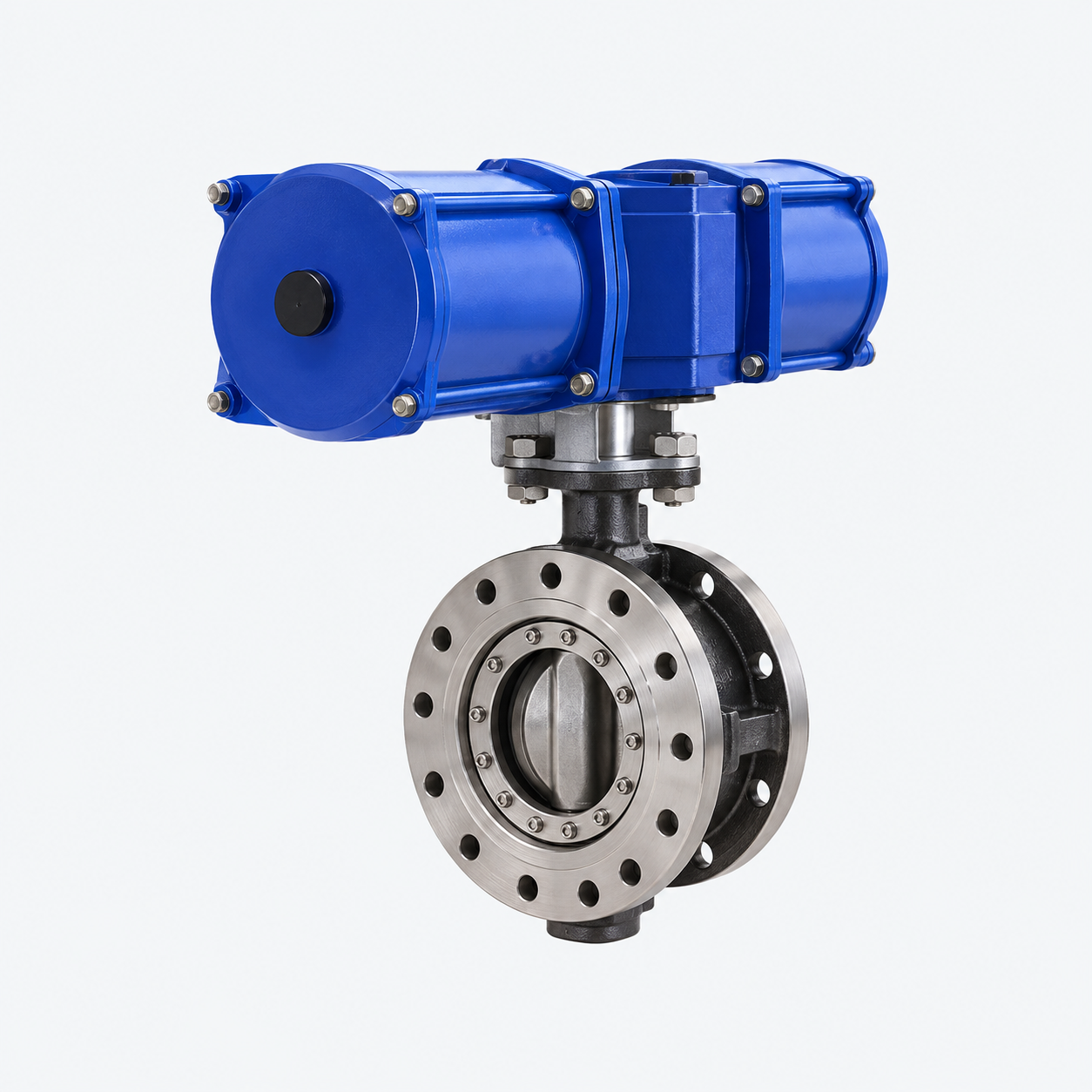

Triple-Offset Butterfly Valves

  • Circulating-water and cooling-water isolation
  • Plant utilities and selected steam service
  • Triple-offset geometry and metal seating
  • Low-rubbing operation and compact construction
Triple-Offset Butterfly ValvesDN80–DN2000 / NPS 3–80
Class 150–900
View product details →
HYDROSTATIC TEST ISOLATION

Hydrostatic Test Isolation Valves

  • Boiler-system hydrostatic test isolation
  • Superheater and reheat-system duty
  • Removable test isolation plate
  • Normal-operation flow-guide arrangement
Hydrostatic Test Isolation ValvesDN225–DN1000 · Class 300–3000SPL
Configuration-specific ratings
View product details →

BACKED BY HARBIN ELECTRIC

Manufacturing, Engineering & Validation Capability

HEVC is supported by the valve manufacturing platform within Harbin Electric Corporation, combining critical-valve engineering, controlled manufacturing and dedicated validation capabilities for demanding power-generation applications.

Manufacturing Scale

Large-scale manufacturing platform with dedicated production, testing equipment and large-component machining capability.

75,000 m²

Total Harbin manufacturing site, including production and supporting operations.

42,000 m²

Dedicated production area within the manufacturing platform.

≈2,400 tons

Published annual valve production capacity.

200+ sets

Manufacturing and testing equipment across the production platform.

3,500 mm

Vertical CNC turning capacity for large valve components.

Engineering Capabilities

Capabilities spanning extreme pressure, temperature, size and service conditions for advanced power-generation applications.

Class 4500SPL

Published pressure-class capability for critical power valves.

DN2800+

Large-bore power valve manufacturing envelope.

−196°C

Cryogenic qualification capability for applicable valve designs.

623°C

Published power-valve temperature capability.

650°C-class

Advanced development direction for next-generation power service.

Testing & Qualifications

Dedicated validation capabilities for pressure, high-temperature steam, cryogenic service, lifecycle durability and flow performance.

20 MPa

Hot-steam testing

High-temperature steam testing at up to 570°C and 4 t/h for applicable valve configurations.

DN600

Lifecycle testing

Cycle and durability validation for valves up to DN600 and Class 2500.

−196°C

Cryogenic testing

Low-temperature validation capability up to DN600 and Class 1500 for applicable designs.

DN15–DN600

Flow-performance testing

Cv, resistance and performance measurement across the published size range.

API 6DAPI 600API 607API 608API 6FDAPI 6AASME B16.34ISO 15848ISO 9001API Q1

Applicable certifications vary by valve type, manufacturing location and project requirements.

PROVEN MANUFACTURING PLATFORM EXPERIENCE

Proven at Large-Unit Scale

Published manufacturing-platform references span 106 generating units and 67.8 GW of represented capacity across 350 MW to 1,000 MW-class projects.

Reference Base

106 Units

Large Generating Units Referenced

Published manufacturer references across multiple utility-scale and ultra-large power-generation projects.

67.8 GW

Represented Generating Capacity

Combined nominal generating capacity represented by the published large-unit project references.

350–1,000 MW Class

Published Project Range

Experience spanning utility-scale generating units through 1,000 MW-class power projects.

Large-Unit Project References

30 × 1,000 MW

Ultra-Large Generating Units

Published manufacturer project experience covering thirty separate 1,000 MW-class generating units.

36 × 660 MW

Large Utility Generating Units

Published manufacturer references covering thirty-six 660 MW-class generating units.

40 × 350 MW

Utility-Scale Generating Units

Published manufacturer references covering forty 350 MW-class generating units.

Flagship USC Project Reference

World’s First Commercially Operating 1,000 MW-Class 630°C Double-Reheat Ultra-Supercritical Unit

35.5 MPa

Main Steam Pressure

616 / 631 / 631°C

Project Steam Conditions

Double Reheat

Advanced USC Configuration

1,000 MW-Class

Commercial Generating Unit

A flagship manufacturer project reference demonstrating engineering capability for extreme high-temperature and high-pressure power-generation service.

Project conditions and published ranges describe specific manufacturing-platform capabilities and references. Individual valve ratings are confirmed by model, material and configuration. HEVC products are exclusively represented in North America by Honyen Holding.
