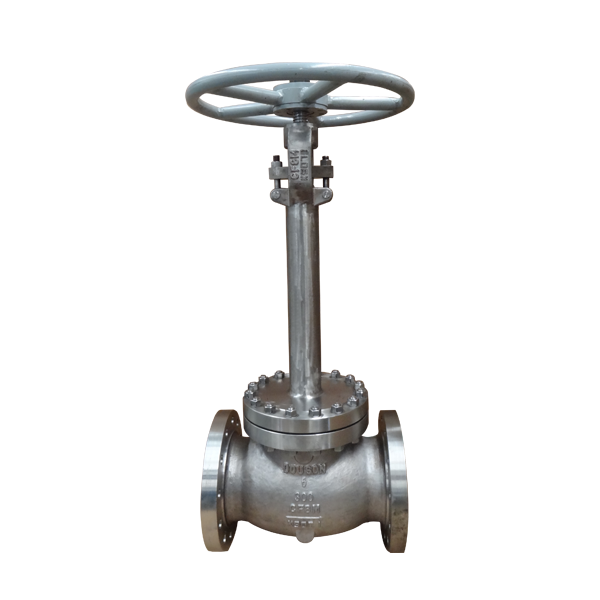

Cryogenic Globe Valves

HEVC cryogenic globe valves provide positive shutoff with an extended bonnet that separates the packing from the cold zone. Guided stem construction, live-loaded packing and cobalt-alloy hardfaced sealing surfaces support dependable isolation in LNG, LPG, air-separation and ethylene piping, with serviceable internal components for practical maintenance.
Technical Specifications Product Scope
Size DN15–DN300 / NPS 1/2–12
Pressure Class Class 150–1500
Temperature −196°C to +120°C
Standards BS 6364; GB/T 24925
Operation Manual / electric
Ends Flanged / welded
Body Materials Low-temperature carbon steel / low-temperature alloy steel / stainless steel
Download
View all downloads
  • Cryogenic Globe Valves,Honyen,Cryogenic Globe Valves | HEVC | Honyen Holding

Description

Design & Construction

  • Extended bonnet

    The bonnet separates the stem packing from the cold process zone; a drip plate helps keep condensate out of the insulation.

  • Guided stem and live-loaded packing

    A guide sleeve supports stem alignment, while the live-loaded gland maintains packing compression.

  • Hardfaced sealing surfaces

    Cobalt-alloy hardfacing on the primary seat and backseat supports wear resistance during repeated shutoff operation.

  • Service and cryogenic preparation

    Serviceable internal components support maintenance. Major components receive deep-cold treatment and degreasing.

Typical Duty / Applications

  • LNG and LPG shutoff

    Isolation of low-temperature process and transfer lines.

  • Air separation

    Cryogenic shutoff duty in air-separation piping.

  • Ethylene service

    Shutoff service in low-temperature ethylene systems.

Related Cryogenic Valves

Cryogenic Ball Valves · Cryogenic Gate Valves · Cryogenic Globe Valves · Cryogenic Control Valves

Explore Oil & Gas Valves →
