Severe-Service Control Valves

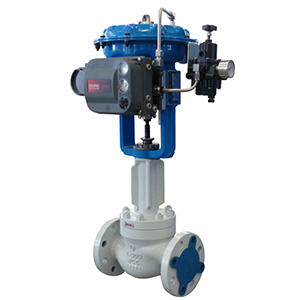

HEVC severe-service control valves regulate steam and feedwater where high differential pressure, cavitation and erosion drive trim design. Sleeve, plunger and labyrinth flow paths provide different pressure-reduction arrangements. Multistage configurations distribute the pressure drop through the trim, with valve capacity, control characteristics, noise and actuator response considered together as an operating package.
Technical Specifications Product Scope
Size Range DN40–DN250
Pressure Rating PN16–PN420; Class 150–4500
Standards NB/T 47044; ASME B16.34; GB/T 24925
Trim / structure plunger / sleeve / labyrinth
Flow characteristics linear / equal-percentage
Service capability high differential pressure; anti-cavitation / anti-erosion / anti-scouring
Download
View all downloads
  • Severe-Service Control Valves,Honyen,Severe-Service Control Valves | Honyen Power Generation
  • Severe-Service Control Valves,Honyen,Severe-Service Control Valves | Steam & Feedwater | Honyen

Description

Design & Construction

  • Sleeve and cage trim

    Single-stage and multistage sleeve or cage arrangements provide alternative pressure-reduction paths.

  • Plunger trim

    Plunger configurations use throttle-orifice arrangements for pressure reduction and erosion-sensitive flow control.

  • Labyrinth and axial multistage trim

    Multiple pressure-reduction stages distribute the pressure drop through the flow path to address severe differential-pressure and cavitation duties.

  • Flow and actuator performance

    The T968Y and T967Y control-valve families form part of the portfolio. Cv, linear or equal-percentage characteristics, noise and actuator response define the control package.

Typical Duty / Applications

  • Feedwater & Startup

    Main-feedwater, feedwater-bypass, WDC and startup-circulation control.

  • Minimum-Flow Recycle

    Minimum-flow control in pump recycle systems.

  • Spray Water & Heater Drains

    Desuperheating-water and normal or emergency heater-drain control.

Project References

Project Reference – Generating Units Selected Specification / Material Design Pressure (MPa) Design Temperature (°C)
2 x 660MW ultra-supercritical DN400; Class2680; SA-105 39.1 371
2 x 1050MW ultra-supercritical DN65; PN200; 25 19.4 195
2 x 350MW supercritical DN150; PN160; WCB 8.39 299

Testing & Documentation

  • Valve performance

    Cv, control characteristics, noise and actuator response define the performance review.

  • Inspection and testing

    Pressure, leakage and specified actuator or functional tests form part of the inspection scope.

  • Technical documentation

    Available project documentation can include valve drawings, model-specific datasheets, material records, inspection and test plans, test reports and operating instructions.
