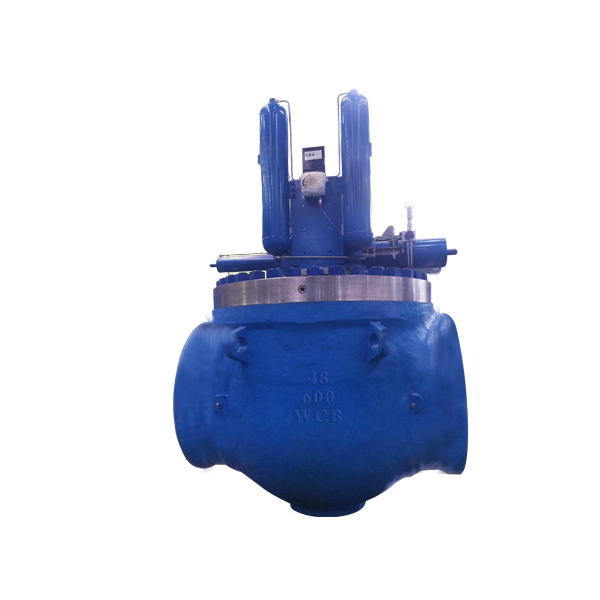

Top-Entry Trunnion Ball Valve

HEVC top-entry trunnion ball valves combine a supported ball with access through the top of the body. The arrangement brings quarter-turn pipeline isolation and maintenance access together for transmission lines, refinery stations and petrochemical systems, with manual or powered operating configurations for station control.
Technical Specifications Product Scope
Size 2–56 in. (DN50–DN1400)
Pressure Rating ASME Class 150–2500 (PN16–PN420)
Temperature -46 to 200°C
Body Materials Carbon steel, stainless steel, alloy steel, duplex steel and nickel-based alloys
Standards API 6D
Ends Flanged or welded
Actuation Manual, pneumatic, electric or hydraulic
Download
View all downloads
  • TEA TEB top-entry trunnion ball valve

Description

Design & Construction

  • Top-entry construction

    Top access to the internal assembly supports maintenance planning around the installed valve.

  • Trunnion-supported ball

    The ball is supported within the body for quarter-turn pipeline isolation.

  • Station operating arrangements

    Manual and powered operating options support local operation and integration into station controls.

Typical Duty / Applications

  • Transmission pipelines

    Large-bore isolation of gas and liquid transmission lines.

  • Refinery and petrochemical stations

    Process isolation at plant and station piping interfaces.

  • Critical isolation stations

    Shutoff points where access to valve internals influences maintenance planning.

Testing & Documentation

  • Inspection and testing

    Material verification, shell-pressure testing, seat-leakage testing and operating checks form the inspection scope.

  • Technical documents

    Valve drawings, datasheets, material records, inspection reports and operating-unit documentation support technical coordination.
