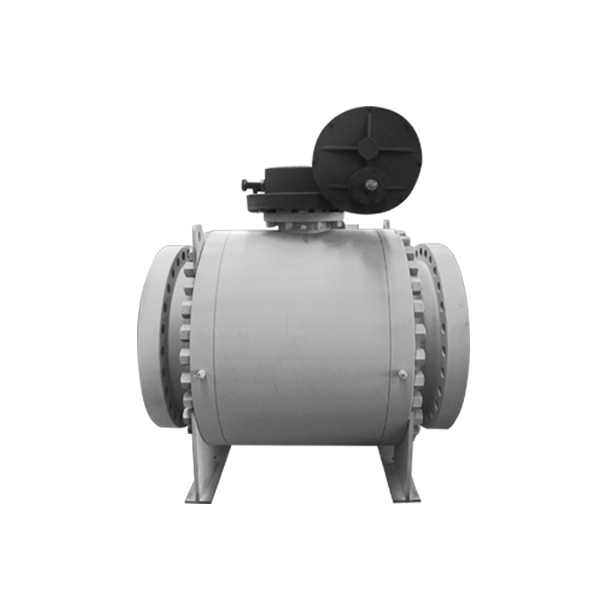

• TA TB side-entry soft-seated trunnion ball valve
  • TA TB side-entry soft-seated trunnion ball valve

Side-Entry Soft-Seated Trunnion Ball Valve

HEVC side-entry soft-seated trunnion ball valves combine a supported ball and soft-seat sealing with two- or three-piece body arrangements. The side-entry construction serves pipeline and station isolation, with a choice of connection, body-material and actuator configurations for gas, crude-oil and refined-product systems.
Technical Specifications Product Scope
Size 2–56 in. (DN50–DN1400)
Pressure Rating ASME Class 150–2500 (PN16–PN420)
Temperature -46 to 200°C
Body Materials Carbon steel, stainless steel, alloy steel, duplex steel and nickel-based alloys
Standards API 6D
Ends Flanged, butt-weld or hub
Actuation Manual, pneumatic, electric or hydraulic
Download
View all downloads
  • TA TB side-entry soft-seated trunnion ball valve

Description

Design & Construction

  • Two- or three-piece body

    Side-entry body arrangements provide alternative assembly configurations within the trunnion-ball platform.

  • Soft-seat sealing

    Soft seats form the shutoff interface around the trunnion-supported ball.

  • Pipeline integration

    Flanged, butt-weld and hub-end options accommodate different line and station interfaces.

Typical Duty / Applications

  • Natural-gas pipelines

    Transmission-line and gas-station isolation.

  • Crude oil and refined products

    Shutoff service in liquid pipeline systems.

  • Compressor stations and terminals

    Isolation of station piping and terminal process lines.

Testing & Documentation

  • Inspection and testing

    Material verification, shell-pressure testing, seat-leakage testing and operating checks form the inspection scope.

  • Technical documents

    Valve drawings, datasheets, material records, inspection reports and operating-unit documentation support technical coordination.
