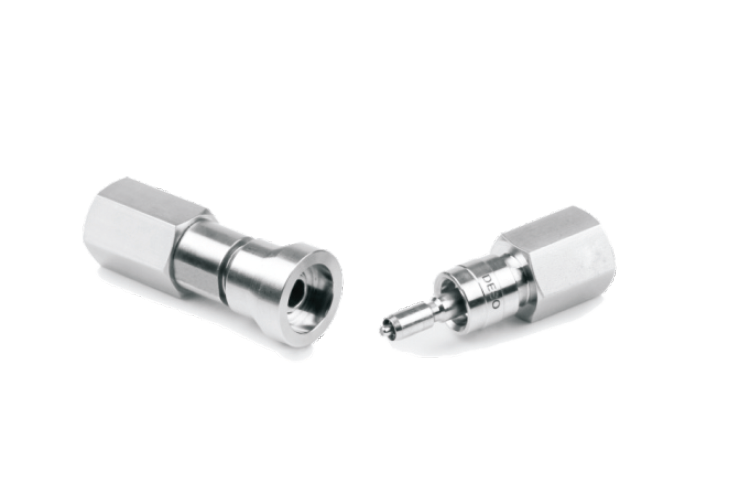

Quick Couplings

Specifications

QC Series

1. Maximum working pressure: 207 bar (3000 psig)
2. Working temperature range:

Fluorocarbon rubber (FKM) seal: -10 °F to 400 °F (-23 °C to 204 °C)

Nitrile rubber (NBR) seal: -10 °F to 250 °F (-23 °C to 121 °C)

3. Materials: Stainless steel or brass
4. Connections:

1/8" to 1/2" NPT

1/8" to 1/2", 6 mm to 12 mm double ferrule

1/4" to 1/2" hose fittings

5. Reliable, leak-free O-ring seal suitable for vacuum and pressure systems
6. Interchangeable with other major brand products
7. Single shut-off, double shut-off, and full-flow configurations available
8. Push-to-connect design for quick and easy operation
9. Large-area locking mechanism ensures secure grip on tubing OD

QF Series

1. Maximum working pressure: 414 bar (6000 psig)
2. Working temperature range:

Fluorocarbon rubber (FKM) seal: -23 °C to 204 °C (-10 °F to 400 °F)

Nitrile rubber (NBR) seal: -23 °C to 121 °C (-10 °F to 250 °F)

3. Materials: Stainless steel, carbon steel, and brass options available
4. Connections:

1/4" to 1" NPT

1/4" to 1", 6 mm to 12 mm double ferrule

5. Full-flow design
6. Quick and easy operation
7. Smooth, open internal cavity with no end valves, minimizing pressure drop and simplifying cleaning

QV Series

1. Maximum working pressure: 137 bar (2000 psig)
2. Working temperature range:

Fluorocarbon rubber (FKM) seal: -23 °C to 204 °C (-10 °F to 400 °F)

Nitrile rubber (NBR) seal: -23 °C to 121 °C (-10 °F to 250 °F)

3. Materials: Stainless steel, carbon steel, and brass options available
4. Connections: 1/8" to 1" NPT
5. Double shut-off
6. Durable ball-locking mechanism ensures a secure connection
7. Push-to-connect design for quick and easy operation
