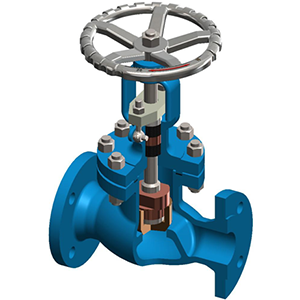

High-Pressure Globe Valves

HEVC high-pressure globe valves provide shutoff and selected throttling for power-plant steam and feedwater lines, with anti-erosion configurations for drains and blowdown. The range includes Y-pattern and T-pattern bodies, dual-seal designs and sleeve-type constructions. In applicable anti-erosion designs, staged throttling helps protect the primary sealing surface from high-velocity flow during opening and closing. Replaceable-seat options support maintenance of erosion-sensitive internals.
Technical Specifications Product Scope
Size DN50–DN400 / NPS 2–16
Pressure Rating PN16–PN420; P54 100V–P60 300V; Class 150–4500 Special
Standards NB/T 47044; ASME B16.34
Structure Y-pattern / T-pattern
Actuation manual / electric / pneumatic
Ends flanged / welded
Body materials carbon steel / alloy steel / stainless steel
Download
View all downloads
  • High-Pressure Globe Valves,Honyen,High-Pressure Globe Valves | Honyen Power Generation
  • High-Pressure Globe Valves,Honyen,High-Pressure Globe Valves | Steam & Feedwater | Honyen

Description

Design & Construction

  • Alternative body configurations

    The J(9)61Y T-pattern and J(9)65Y Y-pattern families provide alternative valve arrangements within the high-pressure globe-valve portfolio.

  • Dual sealing surfaces

    KJ-series anti-erosion configurations use two sealing interfaces to help protect the primary shutoff surface during valve opening and closing.

  • Staged throttling

    Selected designs distribute pressure reduction through dedicated throttling features, reducing direct exposure of the primary sealing interface to erosive flow.

  • Serviceable internal components

    Sleeve-type configurations incorporate replaceable seats and sleeve-throttling arrangements, allowing applicable internal components to be serviced or replaced.

Typical Duty / Applications

  • Steam & Feedwater

    Shutoff in main-steam, boiler-feedwater and high-pressure water piping.

  • Drains & Blowdown

    Drain, blowdown and high-differential-pressure isolation duties where erosion influences valve selection.

  • Auxiliary Systems

    Steam and water isolation in power-plant auxiliary piping.

Testing & Documentation

  • Inspection and testing

    Shell-pressure testing, seat-leakage testing and other specified inspections are defined for the selected valve configuration.

  • Technical documentation

    Available project documentation can include valve drawings, model-specific datasheets, material records, inspection and test plans, test reports and operating instructions.
