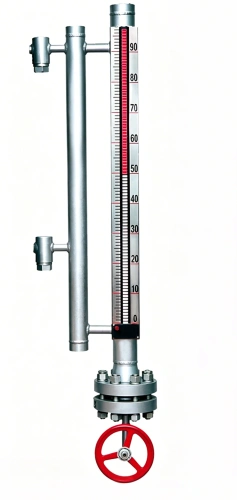

Designed for direct level indication under demanding steam-drum conditions, using magnetic coupling to provide local indication without direct contact between the float and indicator.

42 MPaMaximum pressure

550°CMaximum temperature

±10 mmTypical accuracy

600–1200 mmCenter-to-center

Clear red-and-white local display
High-pressure, high-temperature capability
Optional transmitter and switch accessories

View product details →

Electronic Drum Monitoring

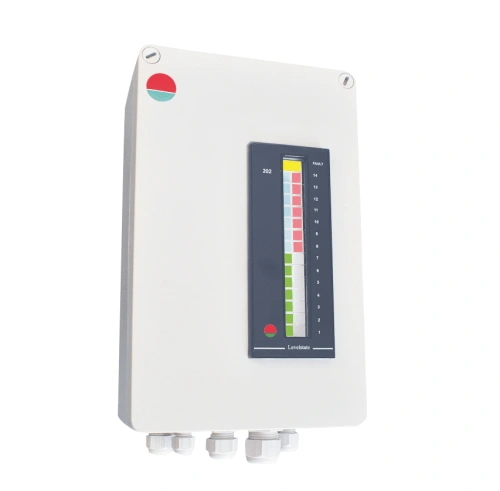

EDLI — Electronic Drum Level Indicator

Multi-Point Electronic Steam / Water Level Monitoring

Designed for boiler drums and demanding steam/water applications requiring continuous multi-point level indication, configurable alarms and remote signal transmission.

8–48Channels

207 barMaximum pressure

370°CMaximum temperature

Dual 4–20 mAAnalog output

Red/green LED level display
Relay alarms for trips or annunciation
Dual supply option for added reliability

View product details →

Compact Electronic Detection

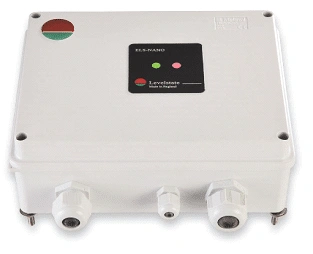

ELS Nano

Compact Single-Point Steam / Water Level Detection

A compact electronic level switch for steam/water detection where space is limited and reliable single-point indication is required.

Single PointDetection format

207 barMaximum pressure

LEDVisual indication

RelayOutput option

Compact electronics housing
Conductivity-based steam/water detection
Simple local indication and alarm output

View product details →

Multi-Point Level Switching

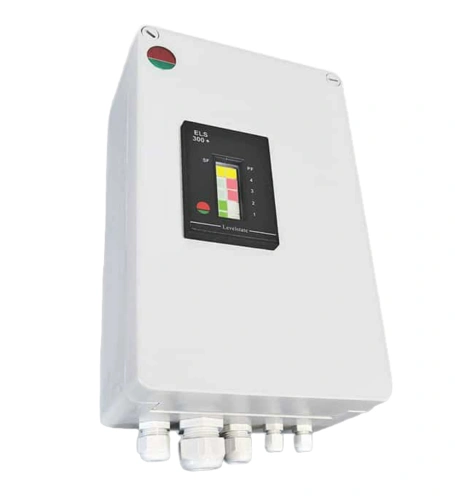

ELS300+

Multi-Point Electronic Level Switching for High Pressure & Temperature

A rugged multi-channel electronic level-switch platform for high-pressure and high-temperature steam/water applications.

1–8Channels

207 barMaximum pressure

370°CMaximum temperature

LED + RelayIndication and output

Multi-point detection in one package
High-integrity electrode chamber design
Field-replaceable electronics

View product details →

Featured Flow Measurement

Low-pressure-loss measurement across broad line sizes

Averaging Pitot tube technology supports liquid, gas and steam measurement where low permanent pressure loss, retrofit flexibility and broad size coverage matter.

Differential-Pressure Flow Measurement

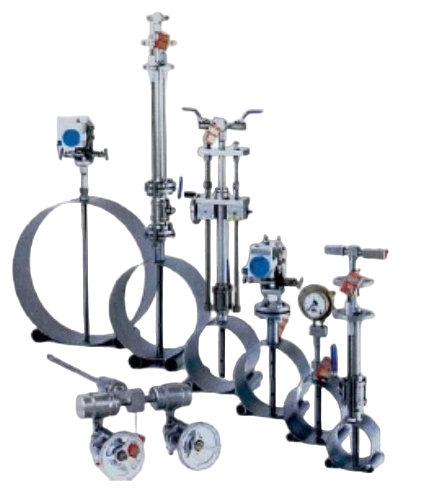

ITABAR® Averaging Pitot Tube

Low-Pressure-Loss Flow Measurement for Liquids, Gases & Steam

ITABAR® averaging Pitot tubes provide differential-pressure flow measurement with very low permanent pressure loss and flexible installation options across a broad range of pipe and duct sizes.

DN20–DN12000Available size range

Up to 400 barPressure capability

−50°C to +1200°CTemperature capability

±0.3% to ±1%Typical accuracy by design

Very low permanent pressure loss
Insertion design for retrofit installation
Liquid, gas and steam service

View product details →

Measurement Approaches

Clear technology paths for level and flow requirements

The portfolio is organized around the indication method, process conditions and output required by the application.

Direct Visual Level Indication

Local indication for steam drums and high-pressure vessels where operators require a clear visual reading at the equipment.

High-Pressure Magnetic Level Gauge

Electronic Level Monitoring

Single-point and multi-point detection for indication, alarm and control functions in steam/water and boiler service.

EDLI · ELS Nano · ELS300+

Differential-Pressure Flow Measurement

Low-pressure-loss averaging Pitot tube measurement for process lines, large ducts and retrofit installations.

ITABAR® Averaging Pitot Tube
