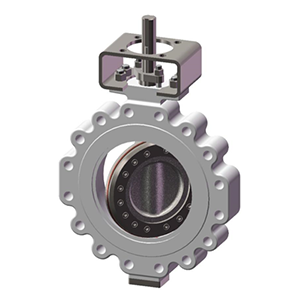

Triple-Offset Butterfly Valves

HEVC triple-offset butterfly valves provide metal-seated isolation for large-bore cooling-water, circulating-water and utility piping. Triple-offset geometry limits rubbing during opening and closing, while quarter-turn operation provides a compact valve arrangement. The BTT / TTM platform combines alternative end connections with manual, electric or pneumatic actuation for different plant operating requirements.
Technical Specifications Product Scope
Series BTT / TTM
Size range DN80–DN2000 / NPS 3–80
Pressure Rating PN0.6–PN160 / Class 150–900
Design references NB/T 47044; ASME B16.34, as applicable
End connections Flanged / wafer
Body materials Carbon steel / alloy steel / stainless steel
Actuation Manual / electric / pneumatic
Download
View all downloads
  • Triple-Offset Butterfly Valves,Honyen,Triple-Offset Butterfly Valves | NPS 3–80 | Honyen

Description

Design & Construction

  • Triple-offset geometry

    Offset geometry provides non-rubbing opening and closing movement in the selected design.

  • Metal-seated construction

    Metal-seated configurations form the basis of the isolation arrangement.

  • Compact quarter-turn operation

    Quarter-turn construction suits large-bore piping where installation space and operating torque influence valve selection.

  • Actuation options

    Manual, electric and pneumatic drive arrangements support different shutoff duties and operating frequencies.

Typical Duty / Applications

  • Cooling Water

    Isolation in plant cooling-water piping.

  • Circulating Water

    Large-bore isolation in circulating-water systems.

  • Balance of Plant

    Utility and selected process-isolation service.

  • Turbine Exhaust

    Separate exhaust and vacuum-duty configurations are engineered beyond the utility-valve arrangement.

Testing & Documentation

  • Inspection and testing

    Shell-pressure and seat-leakage testing cover the valve body and sealing arrangement.

  • Technical documentation

    Available project documentation can include valve drawings, model-specific datasheets, material records, inspection and test plans, test reports and operating instructions.
