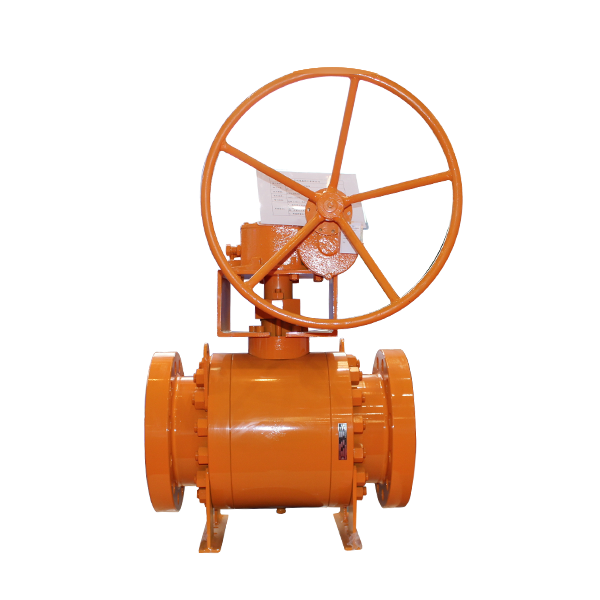

Side-Entry Metal-Seated Trunnion Ball Valve

No.TAM/TBM
HEVC metal-seated trunnion ball valves use hardened metal-seat construction for process isolation exposed to elevated temperature, abrasive media and entrained particles. The side-entry body and trunnion-supported ball provide a dedicated severe-service shutoff platform, with body-material and actuator options for refinery and petrochemical piping.
Technical Specifications Product Scope
Size 2–40 in. (DN50–DN1000)
Pressure Rating ASME Class 150–2500 (PN16–PN420)
Temperature -46 to 450°C
Body Materials Carbon steel, stainless steel, alloy steel, duplex steel and nickel-based alloys
Ends Flanged or welded
Actuation Manual, pneumatic, electric or hydraulic
Download
View all downloads
  • TAM/TBM Series Side-Entry Metal-Seated Trunnion Ball Valve,Honyen,TAM/TBM Metal-Seated Trunnion Ball Valve | HONYEN

Description

Design & Construction

  • Hardened metal-seat construction

    Metal seating addresses wear exposure at the shutoff interface in abrasive and particulate service.

  • Side-entry body

    The side-entry arrangement houses the trunnion-supported ball and seating components.

  • Severe-service configuration

    Body, trim and sealing arrangements address high-temperature isolation and erosion-sensitive process duties.

Typical Duty / Applications

  • High-temperature process lines

    Shutoff service in hot-process piping.

  • Abrasive and particulate media

    Isolation of process streams containing entrained particles.

  • Refinery and petrochemical systems

    Severe-service isolation in refinery and chemical processing units.

Testing & Documentation

  • Inspection and testing

    Material verification, shell-pressure testing, seat-leakage testing and operating checks form the inspection scope.

  • Technical documents

    Valve drawings, datasheets, material records, inspection reports and operating-unit documentation support technical coordination.
