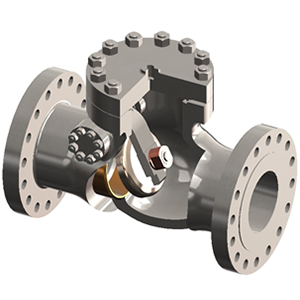

• High-Pressure Check Valves,Honyen,High-Pressure Check Valves | Honyen Power Generation
  • High-Pressure Check Valves,Honyen,High-Pressure Check Valves | Feedwater & Steam | Honyen
  • High-Pressure Check Valves,Honyen,High-Pressure Check Valves | Honyen Power Generation
  • High-Pressure Check Valves,Honyen,High-Pressure Check Valves | Feedwater & Steam | Honyen

High-Pressure Check Valves

HEVC high-pressure check valves protect steam and water systems against reverse flow. Lift, swing and alternative flow-path configurations support different piping arrangements and operating duties. Selected high-temperature designs combine pressure-assisted body sealing with graphite sealing elements, while hardfaced seating surfaces help resist wear and erosion in demanding non-return service.
Technical Specifications Product Scope
Size DN50–DN400 / NPS 2–16
Pressure Rating PN16–PN420; P54 100V–P60 300V; Class 150–4500 Special
Standards NB/T 47044; ASME B16.34
Structures swing / lift / axial-flow / atmospheric-exhaust type
Operation automatic
Ends flanged / welded
Body materials carbon steel / alloy steel / stainless steel
Download
View all downloads
  • High-Pressure Check Valves,Honyen,High-Pressure Check Valves | Honyen Power Generation
  • High-Pressure Check Valves,Honyen,High-Pressure Check Valves | Feedwater & Steam | Honyen

Description

Design & Construction

  • Lift and swing configurations

    The H61Y family uses lift-type construction; H64Y configurations use swing-type construction.

  • Alternative flow paths

    H65Y and H67Y families provide additional valve arrangements for different installation and operating requirements.

  • Pressure-assisted body sealing

    Selected high-temperature designs combine pressure-assisted body sealing with graphite sealing elements.

  • Hardfaced seating

    Stellite hardfacing supports wear and erosion resistance at the seating surfaces in applicable designs.

Typical Duty / Applications

  • Feedwater Systems

    Non-return protection in main-feedwater and high-pressure water piping.

  • Pump Discharge

    Reverse-flow protection at pump outlets.

  • Steam & Auxiliary Piping

    Non-return service in steam lines and auxiliary systems.

Project References

Project Reference – Generating Units Selected Specification / Material Design Pressure (MPa) Design Temperature (°C)
2 x 1100MW ultra-supercritical DN400; Class2500; WCB 35.1 371
2 x 660MW ultra-supercritical DN550; PN420; WB36 35.1 320
1 x 1000MW ultra-supercritical DN600; PN420; WB36 35.6 316

Testing & Documentation

  • Inspection and testing

    Shell-pressure and seat-leakage testing form part of the valve inspection scope.

  • Technical documentation

    Available project documentation can include valve drawings, model-specific datasheets, material records, inspection and test plans, test reports and operating instructions.
