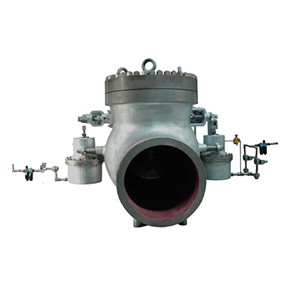

Extraction Steam Check Valves

HEVC extraction steam check valves provide fast-closing non-return protection for turbine extraction and feedwater-heater systems. The designs combine follow-up closing with forced closing, supported by pneumatic or hydraulic actuation. Position feedback and online checking provisions give operators visibility of valve status, while dedicated high-exhaust configurations extend the range of turbine-protection arrangements.
Technical Specifications Product Scope
Product type power-generation extraction steam check valve
Function fast-closing non-return protection against steam or water backflow
Service turbine extraction lines and feedwater-heater extraction systems
Size and pressure class project-specific
Closing time qualified against project requirements
Actuator logic and fail action project-specific
Download
View all downloads
  • Extraction Steam Check Valves,Honyen,Extraction Steam Check Valves | Honyen Power Generation
  • Extraction Steam Check Valves,Honyen,Extraction Steam Check Valves | Turbine Protection | Honyen

Description

Design & Construction

  • Independent closing paths

    KGH664Y designs combine follow-up closing and forced closing for turbine-protection service.

  • Actuated closing

    Pneumatic and hydraulic configurations provide alternative actuation arrangements for the protection system.

  • Position feedback and online checks

    Available designs provide open, closed and intermediate position feedback together with online checking provisions.

  • High-exhaust configurations

    The family includes separate high-exhaust arrangements with dual-actuator designs.

Typical Duty / Applications

  • Extraction Steam

    Reverse-flow protection in turbine extraction piping.

  • Feedwater Heaters

    Non-return protection in heater extraction-steam lines.

  • Trip & Load Rejection

    Forced-closing service during turbine trips, load rejection and heater upsets.

Project References

Project Reference – Generating Units Selected Specification / Material Design Pressure (MPa) Design Temperature (°C)
2 x 600MW supercritical DN250; WC6 6.819 405.7
2 x 1000MW ultra-supercritical DN175; F91 18.8 564
1 x 1000MW ultra-supercritical DN200; F91 19.64 585

Testing & Documentation

  • Protection performance

    Closing response, actuator logic, fail action and endurance testing define the turbine-protection test scope.

  • Inspection and testing

    Pressure and leakage testing cover the valve pressure boundary and shutoff arrangement.

  • Technical documentation

    Available project documentation can include valve drawings, model-specific datasheets, material records, inspection and test plans, test reports and operating instructions.
