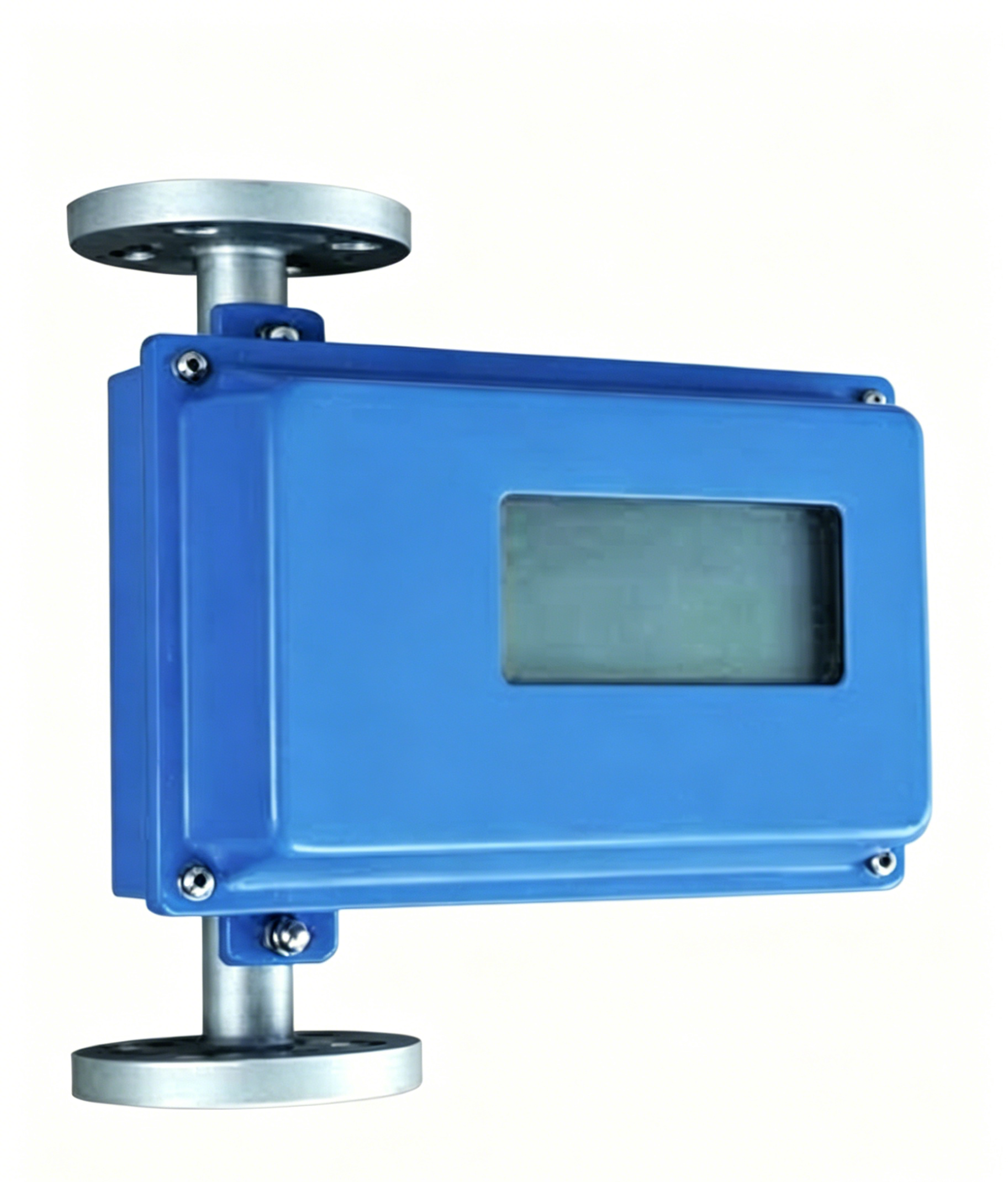

The TDF series intelligent metal tube rotameter includes a battery-powered 4–20 mA remote transmission type. It is widely used for flow measurement and automatic control of liquids and gases in national defense, chemical, petroleum, metallurgical, power, environmental protection, pharmaceutical and other industries
It can operate under user-defined working conditions such as medium density, temperature, pressure and full-scale flow parameters, bringing great convenience for on-site application, and improving metering calculation accuracy and remote transmission resolution
Turndown ratio: 10:1
Accuracy class: 1.5%, 2.5%
Working pressure: 1.6 MPa, 2.5 MPa, 4.0 MPa
Fluid temperature: -20 ℃～80 ℃ or -80 ℃～250 ℃
Liquid medium viscosity:
-DN15: ＜5 mPa·S
-DN25～DN100: ＜50 mPa·S
