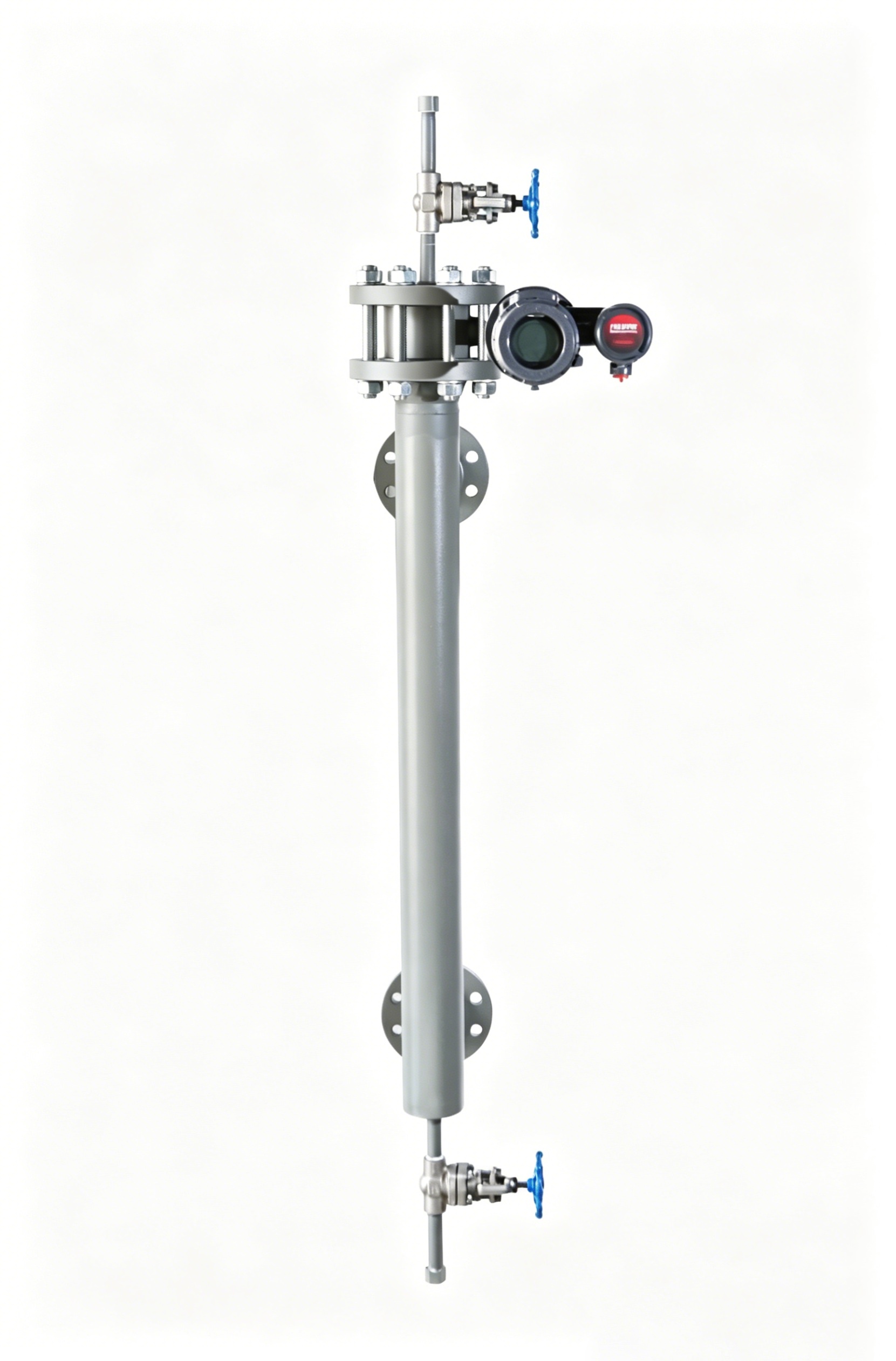

DUT type intelligent buoy level meter

• The DUT Type Intelligent Buoy Level Meter consists of a buoy measuring chamber, measuring mechanism and buoy
• It is divided into two types according to different measuring mechanisms: torsion tube type and lever type intelligent buoy level meter
• The DUT intelligent buoy level meter features high linear signal processing accuracy, strong anti-interference capability and stable operation
• Operators can perform remote operation in the central control room, including configuration, monitoring, maintenance and calibration
• With a uniquely designed meter head and isolated working chambers, the instrument is safe and reliable, effectively improving measurement accuracy and operational stability
• Multiple installation methods are available to meet various working conditions
• Explosion-proof and heat tracing functions can be configured on demand
• Measurement Accuracy: ±0.5%FS
• Sensitivity: 0.05%
• Power Supply: 24V DC
• Output Signal: 4～20mA superimposed with HART digital signal
• Cable Entry: 1/2" NPT(F)
• Load Resistance: 230～1100Ω
• Damping Time: 0～32 seconds adjustable
• Measuring Range: 300mm～2000mm (custom extended range available)
• Design Pressure:

-Lever type: 0～6.4MPa

-Torsion tube type: 0～42MPa

• Nominal Diameter: DN40 or customized
• Minimum Measured Density: ≤0.15g/cm³
• Minimum Interface Density Difference: ≥0.02g/cm³
• Protection Grade: IP68
