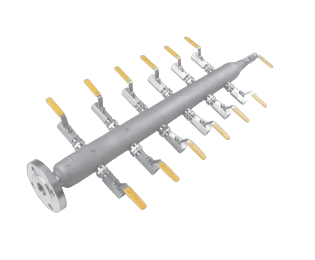

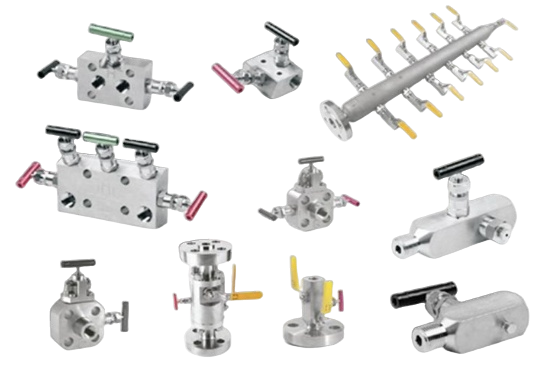

Valve Manifold

• Ball valves, plug valves, and needle valves are optional for outlet and vent connections.
• Optional handle colors: red, yellow, green, and blue.
• Each manifold is leak-tested with nitrogen at maximum working pressure before shipment.
• Main pipe size: NPS 3/4 to 2 or equivalent
• Number of branch outlets: 4 to 48
• Materials: 316, 304 stainless steel and carbon steel available
• Connections:

Inlet: 1" ASME, EN and GB flanges; 1" pipe thread

Outlets: 1/4 to 1/2 pipe thread; 1/2" to 12 mm double ferrule

• Vent connections: 1/4 to 1/2 pipe thread




Air Distribution Manifold

• Maximum working pressure:

Stainless steel: 414 bar (6000 psig)

Alloy 400: 345 bar (5000 psig)

• GV series working temperature:

PTFE packing: -54°C to 232°C (-65°F to 450°F)

Graphite packing: -54°C to 649°C (-65°F to 1200°F)

• GR series working temperature:

Acetal seat: -28°C to 121°C (-20°F to 250°F)

PEEK seat: -28°C to 204°C (-20°F to 400°F)

PFA seat: -28°C to 204°C (-20°F to 400°F)

• Non-rotating lower stem with ball and plug tip design.
• Multiple seat and seal material options available.
• Valve features back-seating in fully open position.
• Rolled or extruded threads for improved mechanical properties.
• Stem thread grease is isolated from process media.
• Adjustable packing gland without removing the valve from service.
• Multiple color handle options available.
• Handles secured with screws at both ends for stability and durability.
• Each valve is leak-tested with nitrogen at rated working pressure before shipment.

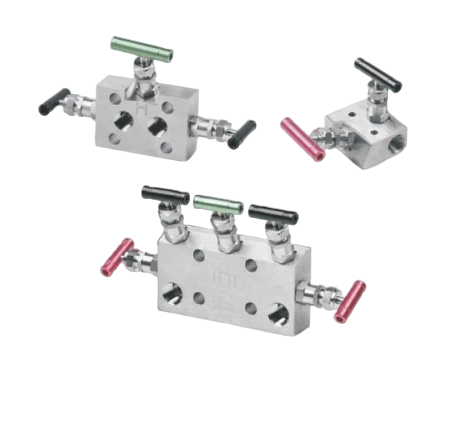

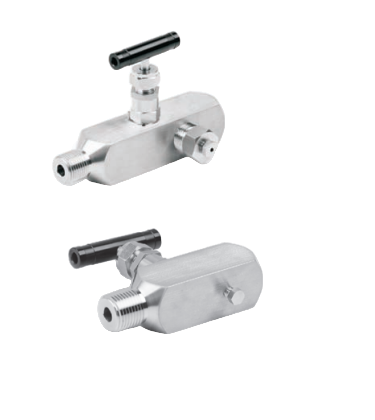

Instrument Valve Manifolds

• Maximum working pressure:

Stainless steel, Alloy C-276: 414 bar (6000 psig)

Alloy 400: 345 bar (5000 psig)

• Working temperature:

PTFE packing: -54°C to 232°C (-65°F to 450°F)

Graphite packing: -54°C to 649°C (-65°F to 1200°F)

• Internal orifice: 4.0 mm (0.157"); Flow coefficient (Cv): 0.35
• Two-piece stem design: Upper stem threads are specially hardened; lower stem is polished and hardened.
• The lower stem moves linearly instead of rotating, significantly reducing total friction area per stroke.
• Non-rotating lower stem prevents galling between the valve tip and seat during closure caused by rotational compression.
• Stem thread grease is isolated from process media.
• Valve features back-seating in fully open position.
• Handles secured with screws at both ends for stability and durability.
• Handles secured with screws at both ends for stability and durability.
• Each valve is leak-tested with nitrogen at rated working pressure before shipment.
