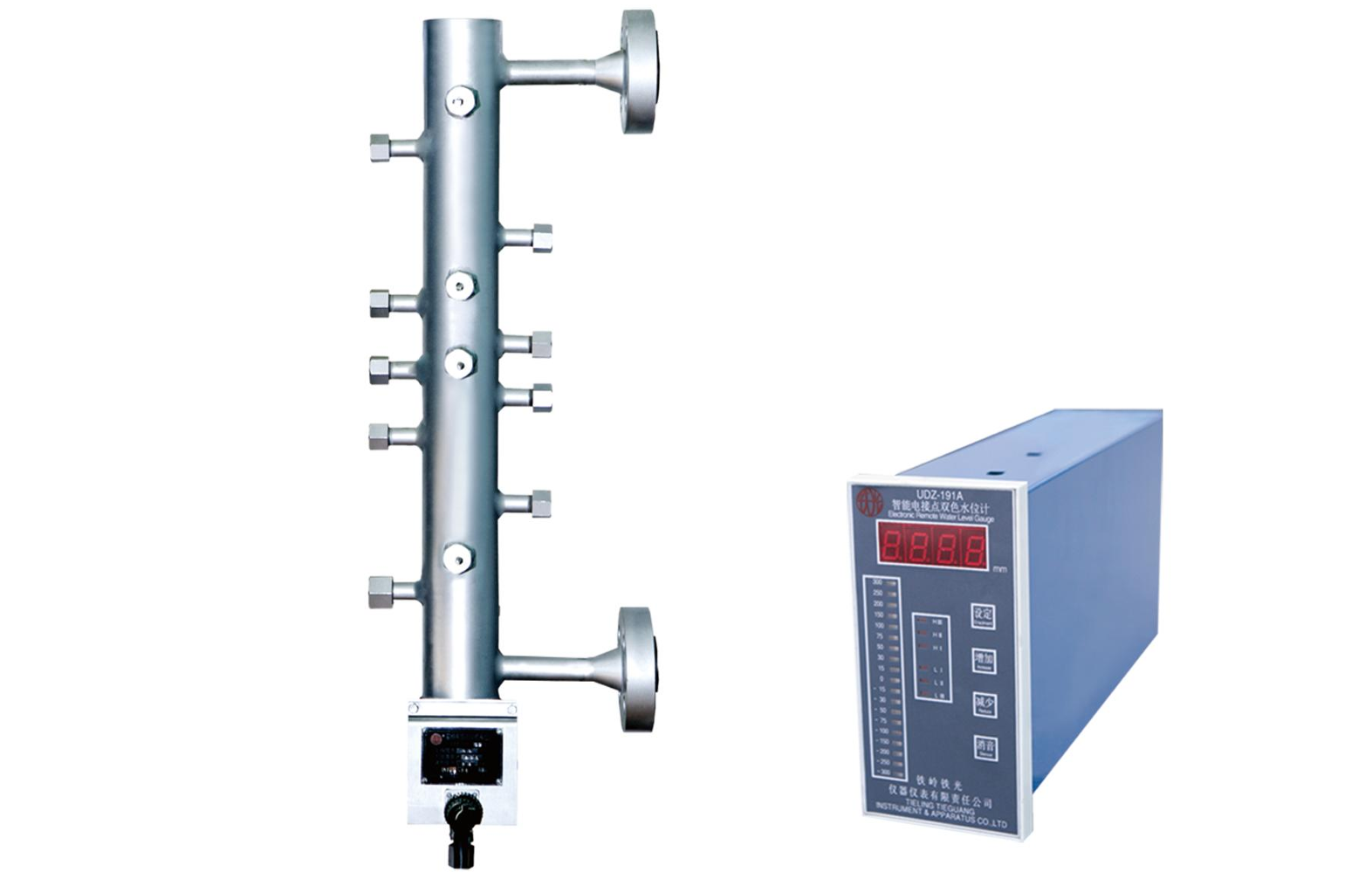

The UDZ Type Intelligent Electric Contact Water Level Gauge consists of a measuring cylinder and a secondary meter
Design Pressure: 22MPa
Operating Temperature: 0～540℃
Center Distance: 670mm or customized as required
Material: 20G / SA106 / 304 / 316 or customized as required
Measuring Point Quantity: 2~33
Measuring Point Position: 0, ±15, ±30, ±50, ±75, ±100, ±150, ±200, ±250, ±300 or customized as required
Secondary Meter Operating Voltage: 220V±22V, 50Hz
Secondary Meter Operating Environment: -10～45℃, Relative Humidity ≤85%
Secondary Meter Output Contact Capacity: 220V, 3A
Secondary Meter Power: 10W
Connection Type: Welded or Flange Connection
Multi-Function Configurations: It supports sound-light alarm, interlock control, and tracing heating. Multiple alarm points can be set on the secondary meter to trigger alerts and interlock actions when the water level is abnormal

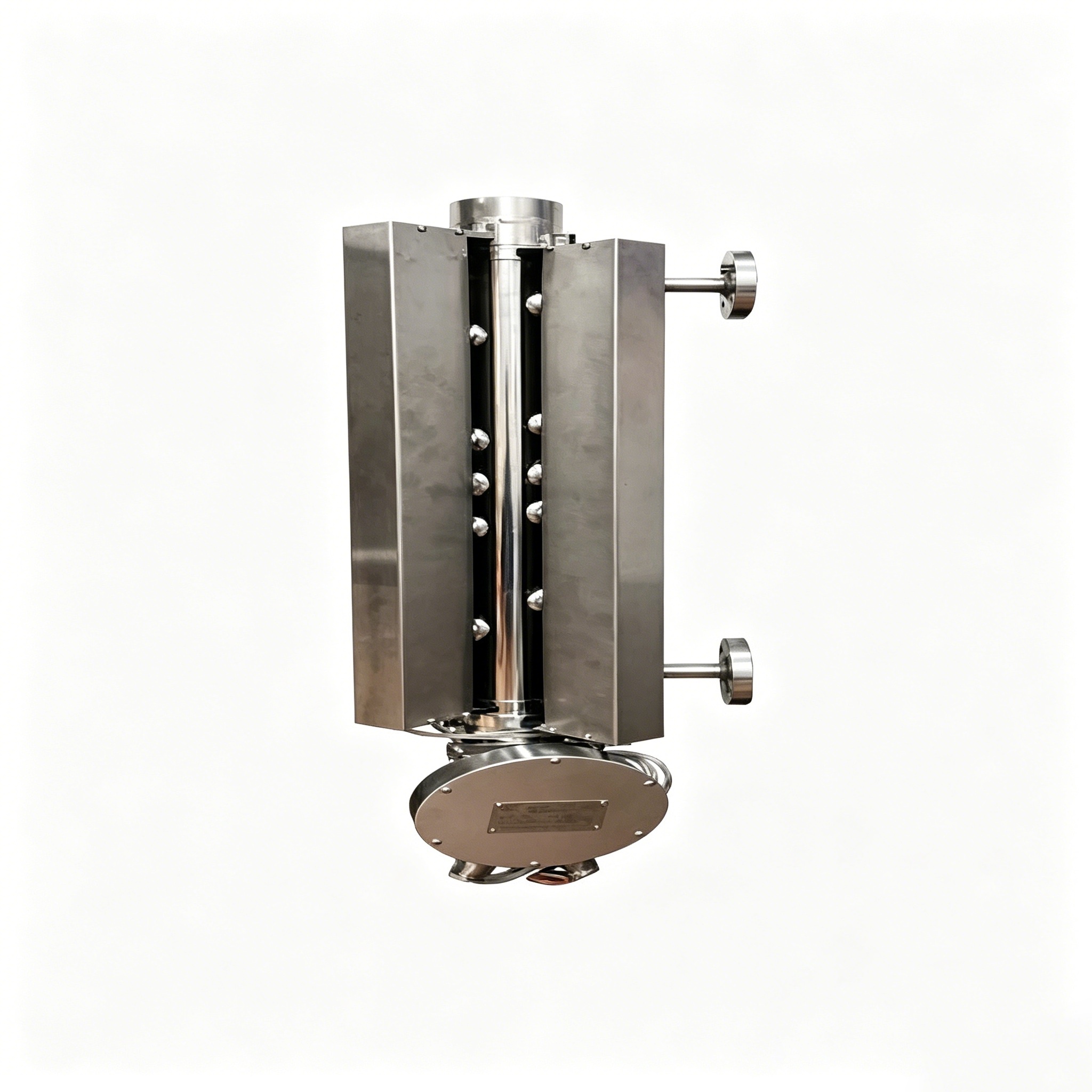

Electric tracing uses ceramic heaters to keep the measuring cylinder temperature consistent with the drum for high precision
