Wedge Flow Meter

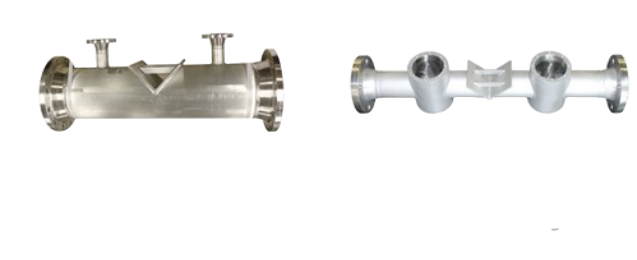

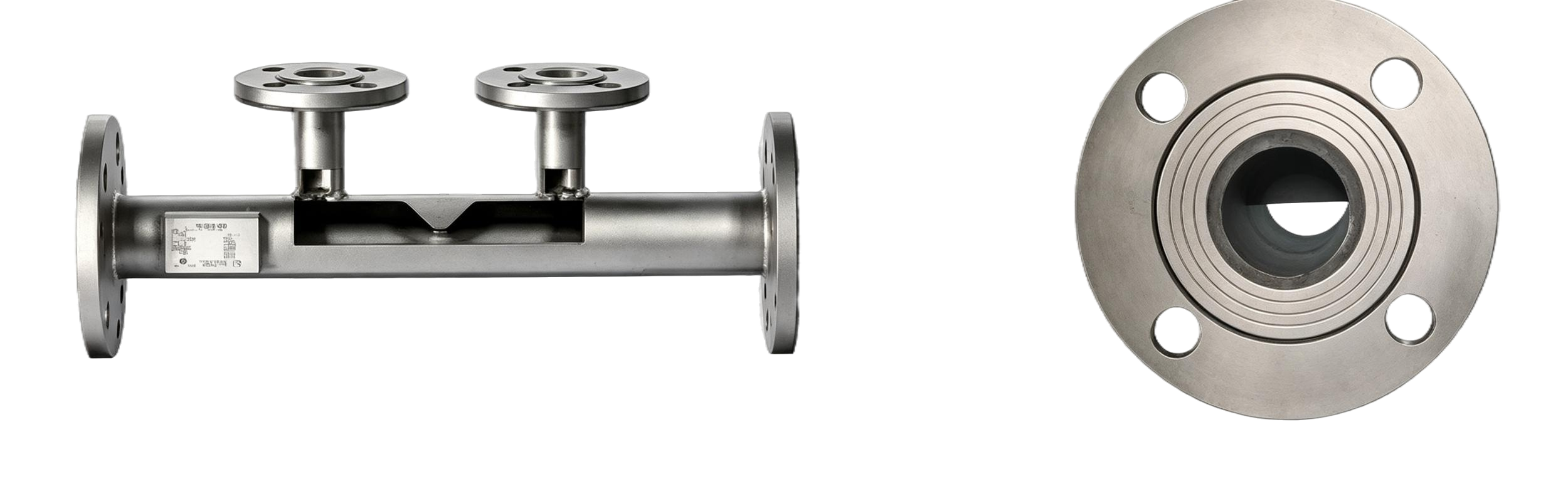

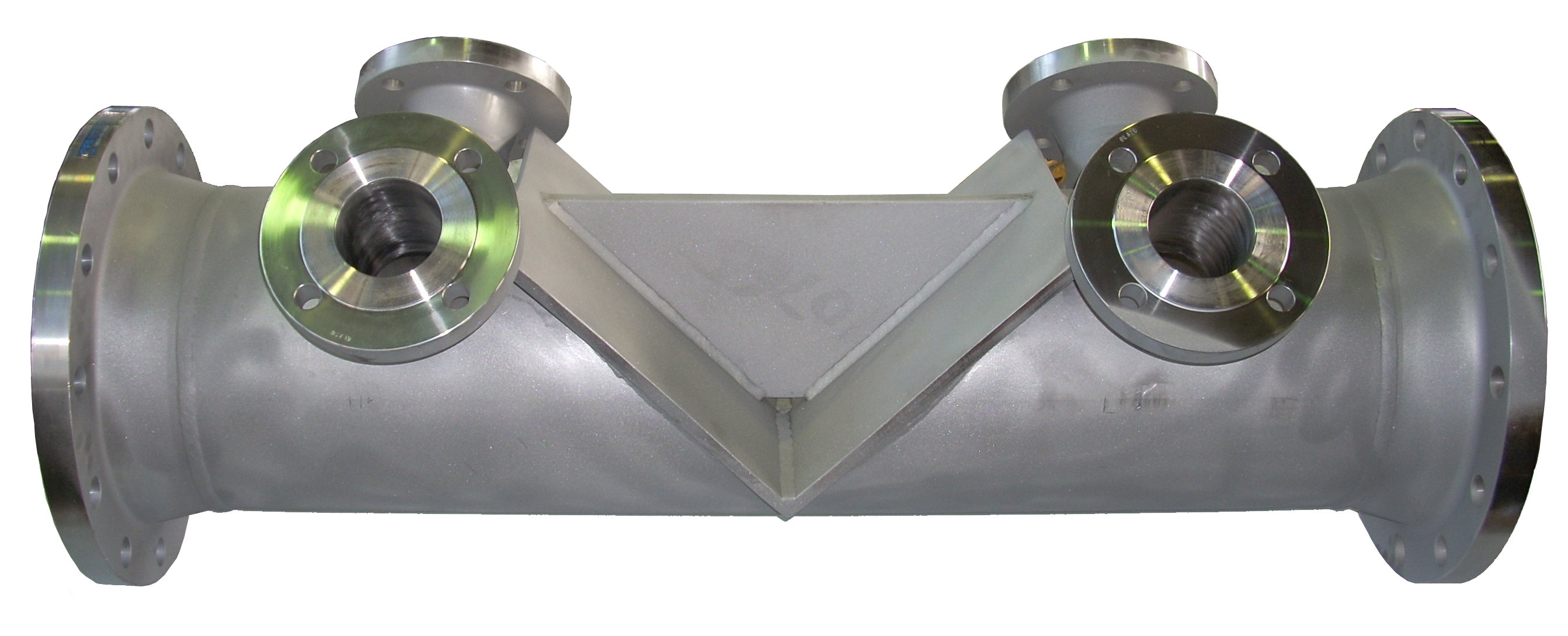

The INTRA-AUTOMATION IWM Wedge Flow Meter is a rugged differential pressure flow meter designed for difficult fluids that challenge traditional meters. It reliably measures viscous, slurry, abrasive, fibrous, entrained air, or dirty liquids, as well as clean liquids, gases, and steam.

Get a Quote

Download

View all downloads

Description

➤ Key Features

Ideal for viscous, slurry, abrasive, fibrous, and entrained-air fluids
Bidirectional flow measurement
Simple, robust structure, low maintenance, long service life
Low permanent pressure loss
Short straight pipe requirements: 5D upstream, 3D downstream
Available sizes: DN50 … DN1200 (2” … 48”)
Wedge opening ratios: 0.2, 0.3, 0.4, 0.5, 0.6, 0.7
Designed to EN ISO 5167 (RW Miller)
Materials: carbon steel, 316L, 316Ti, Hastelloy, Monel
Pressure ratings: PN16 … PN100 / Class 150 … 600

➤ Technical Data

Accuracy: ±0.5% (calibrated)
Repeatability: ±0.2%
Design standard: EN, PED, ANSI/ASME
Pressure taps: flanged DN50 / DN80
Mounting: horizontal / vertical

➤ Typical Applications

Heavy oil, slurry, sewage, sludge, pulp, paper stock, coal water mixture, chemicals, crude oil, process liquids, steam, and difficult industrial fluids.
