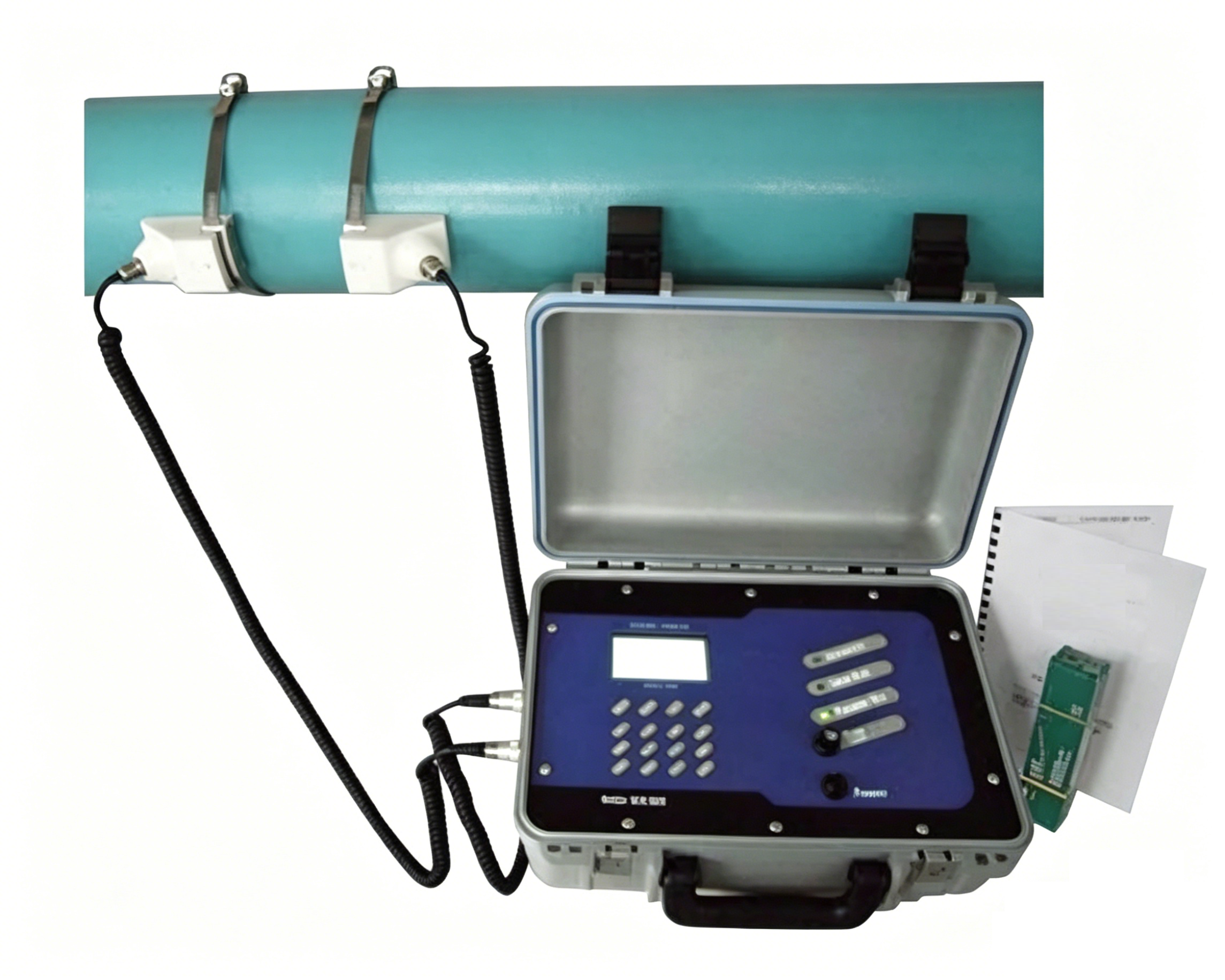

Ultrasonic Flowmeter

• Clamp-on, non-invasive installation– no drilling, no leakage, no downtime
• Transit time measurementwith advanced DSP & MultiPulse™ technology
• Bi-directional flow measurement
• Built-in rechargeable batteryfor up to 40 hours continuous use
• Large backlit LCD display
• SD card data logging(up to 8GB)
• Standard outputs: 4–20mA, pulse, relay, RS485 (Modbus)
• Optional BTU / heat flow meteringwith temperature inputs
• Lightweight, rugged, and fully portable

• Accuracy: ±1.0% of reading
• Repeatability: ±0.2%
• Velocity range: 0 … ±12 m/s
• Pipe size: DN15 … DN4500
• Media temperature: -40 … +121°C(high temp up to 250°C)
• Suitable for: water, oil, chemicals, HVAC, food, wastewater
• Mounting methods: V, W, Z – adaptable to all pipe conditions
