➤ Key Features
- Compliant with ISO 5167, ASME, DINstandards

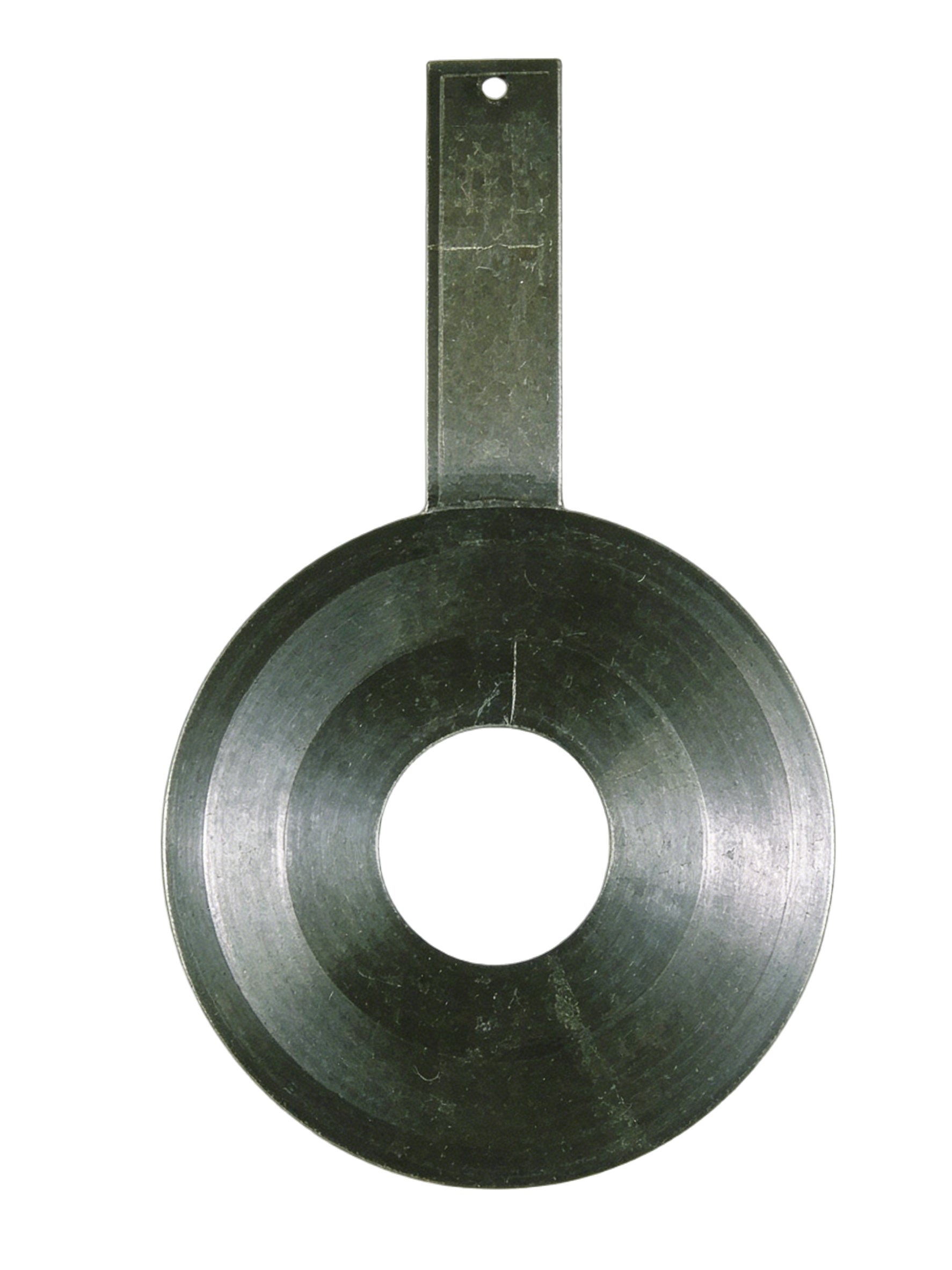

- Types: concentric, eccentric, segmental, quadrant-edged
- Pressure tappings: flange, corner, radius (1D/0.5D), pipe (2.5D/8D)
- Pressure rating: PN10 … PN400 / Class 150 … 2500
- Line sizes: DN15 … DN800 (½” … 24”)
- Materials: carbon steel, 304, 316L, 316Ti, Hastelloy, etc.

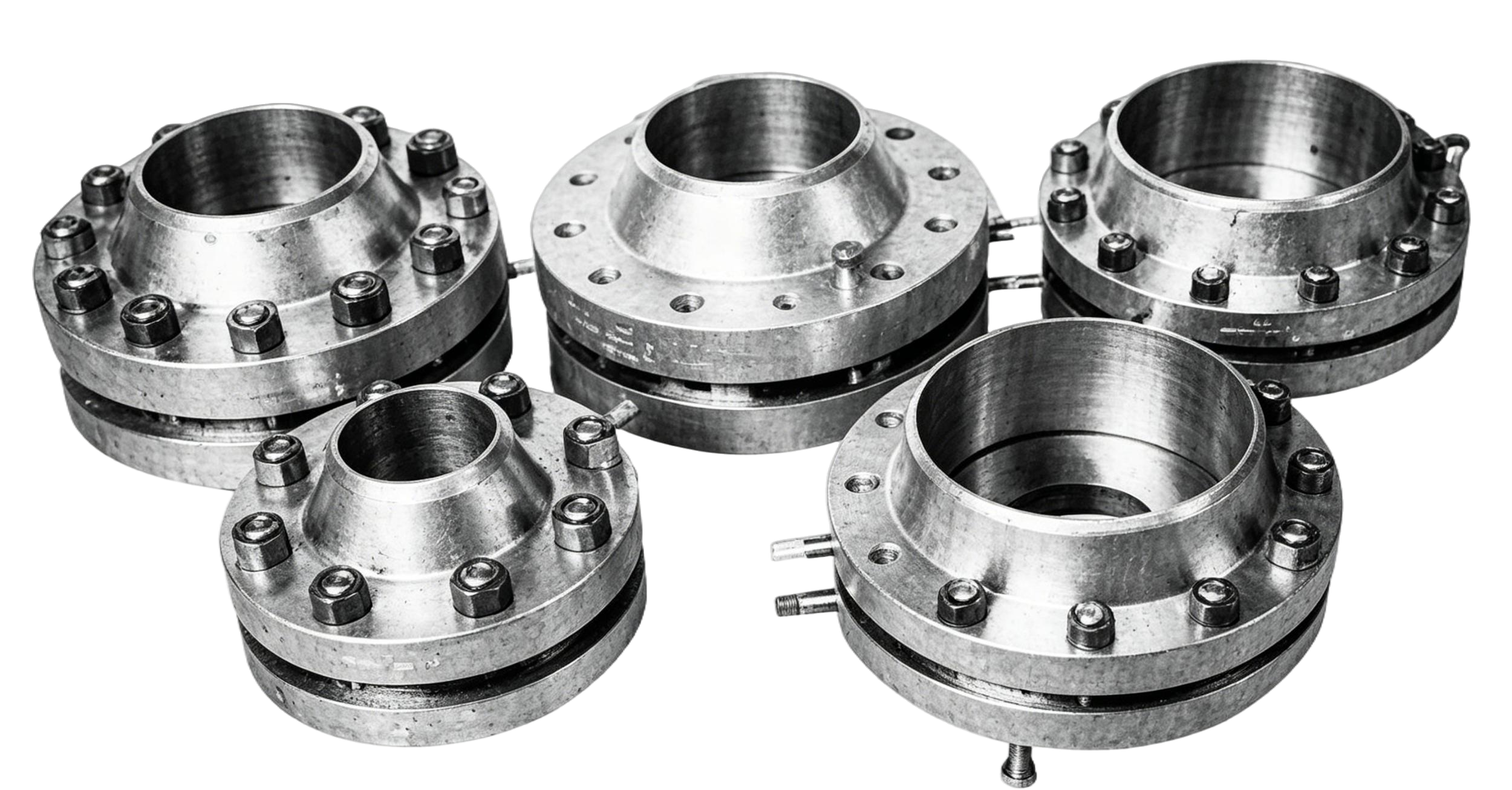

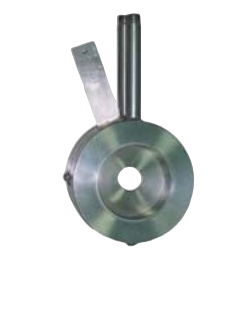

- Integral orifice flanges (BLS-300) and precision meter runs (MBL-500) available
- Complete assemblies with condensate pots, valves and manifolds
➤ Typical Applications
Thermal power, petrochemical, oil & gas, metallurgy, utility systems, and general industry for flow metering of water, steam, air, gas and process fluids.
➤ Technical Summary
- Measuring principle: Differential pressure
- Standards: ISO 5167, ASME, DIN
- Accuracy: ±0.5% of rate
- Pressure: up to 400 bar / Class 2500
- Connections: flanged, welding, threaded
- Options: drain/vent holes, RTJ gasket, high-temperature design
