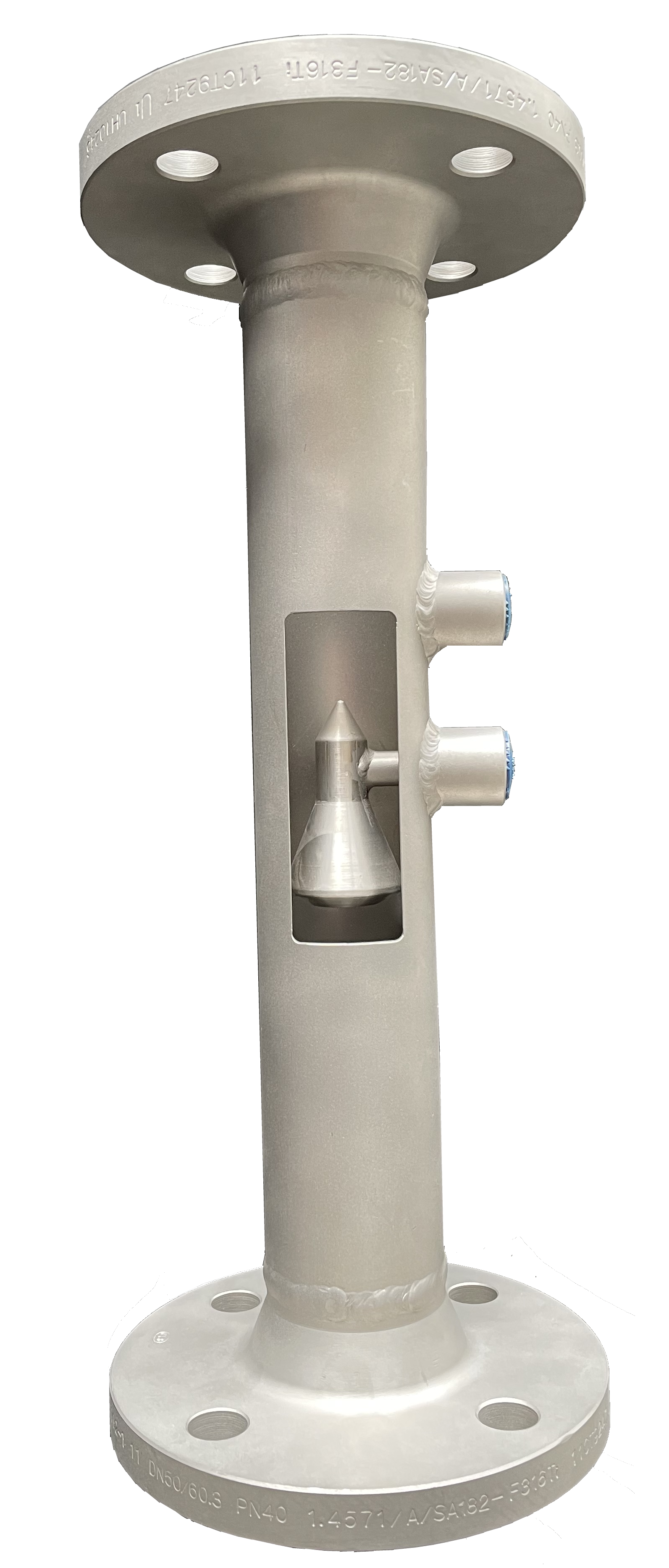

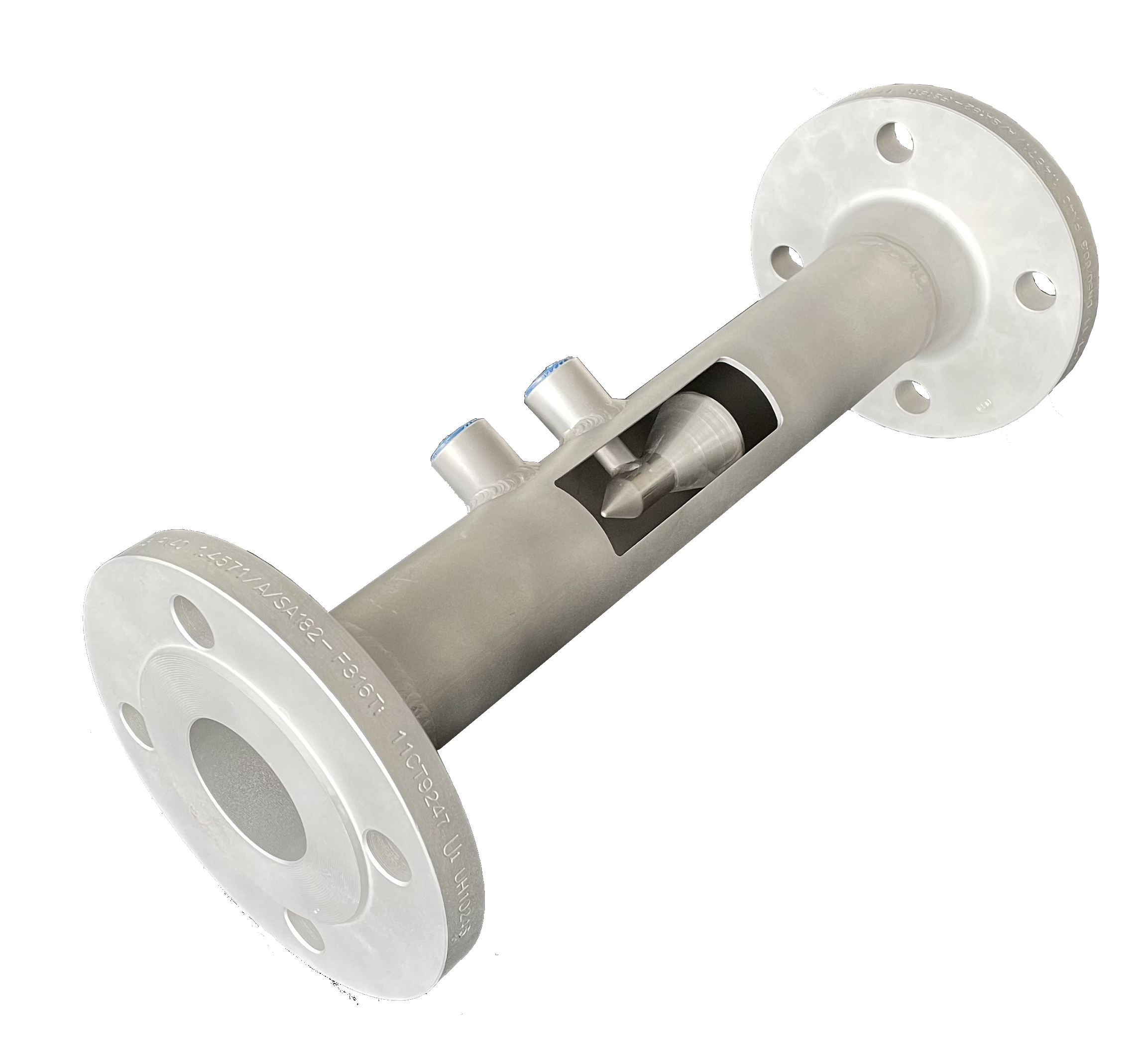

Cone Flow Meter

The ICM Cone Flow Meter from INTRAAUTOMATION is a highperformance differential pressure flow meter for precise measurement of liquids, gases, steam, and slurries. Featuring a unique centrally mounted cone element, it delivers exceptional accuracy, wide turndown, low pressure loss, and selfcleaning capability for demanding industrial applications.

Get a Quote

Download

View all downloads

Description

➤ Key Features

High accuracy: ±0.5% of actual flow
Excellent repeatability: < ±0.1%
Wide turndown ratio up to 10:1
Self-cleaningcone design minimizes buildup and abrasion
Low permanent pressure loss
Short straight pipe requirements: 3D upstream / 1D downstream
Available for line sizes DN15 to DN3000
Operating pressure up to 420 bar
Operating temperature up to 700 °C
Wide material selection: carbon steel, 304SS, 316L, 316Ti, Duplex 2205, Hastelloy C276, etc.
Connection types: flanged, threaded, welding ends, hub ends

➤ Typical Applications
Oil & gas, petrochemical, chemical, power, metallurgy, hydrogen energy, environmental protection, and utility systems for reliable flow measurement of clean or dirty fluids.

➤ Technical Data Summary

Measuring principle: Differential pressure
Accuracy: ±0.5% of rate
Repeatability: < ±0.1%
Beta ratio: 0.45 – 0.80
Turndown: 10:1
Line size: DN15 … DN3000
Max pressure: 420 bar
Max temperature: 700 °C
Output: Differential pressure signal (Δp) + 4–20mA (with transmitter)
