High Pressure Ball Valves

Product Introduction

1. One-piece trunnion-style stem, ideal for critical applications.
2. 2-way and 3-way configurations available.
3. PEEK seats offer excellent chemical compatibility, high temperature resistance, wear resistance, and abrasion resistance.
4. Full flow path reduces pressure drop.
5. High-temperature O-ring options available.

Specifications

15B Series Ball Valves

1. Connections: 1/8", 1/4", 3/8", 1/2", 9/16" and 3/4" tube fittings; 1/8", 1/4", 3/8" and 1/2" NPT threads
2. Body material: 316 stainless steel
3. Orifice sizes:

1. 2-way: 0.094" to 0.375"
2. 3-way: 0.094" to 0.328"
   4. Maximum working pressure: 15,000 psig (1034 bar)
   5. Working temperature: 0 °F to 400 °F (-18 °C to 204 °C)

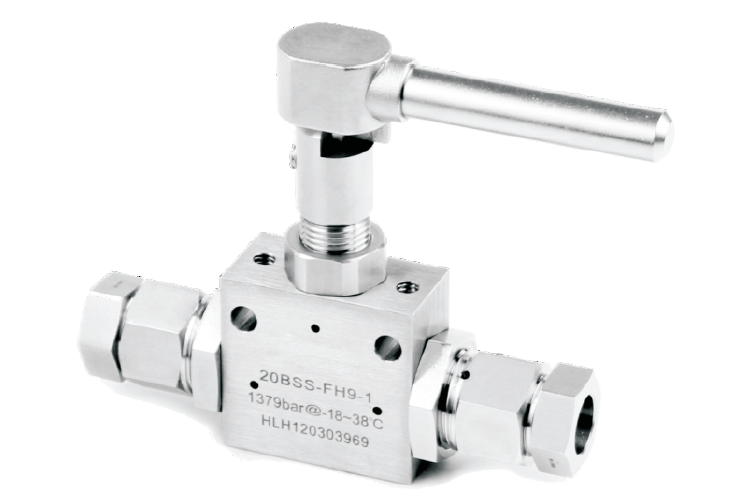

20B Series Ball Valves

1. Connections: 1/4", 3/8", 9/16" and 3/4" tube fittings
2. Body material: 316 stainless steel
3. Orifice sizes:

1. 2-way: 0.109" to 0.328"
2. 3-way: 0.109" to 0.188"
   4. Maximum working pressure: 20,000 psig (1379 bar)
   5. Working temperature: 0 °F to 400 °F (-18 °C to 204 °C)
