System composition: The STV industrial TV system consists of a camera, camera protection mechanism, pantilt, field control box, remote controller, monitor, picture divider, and supporting cables

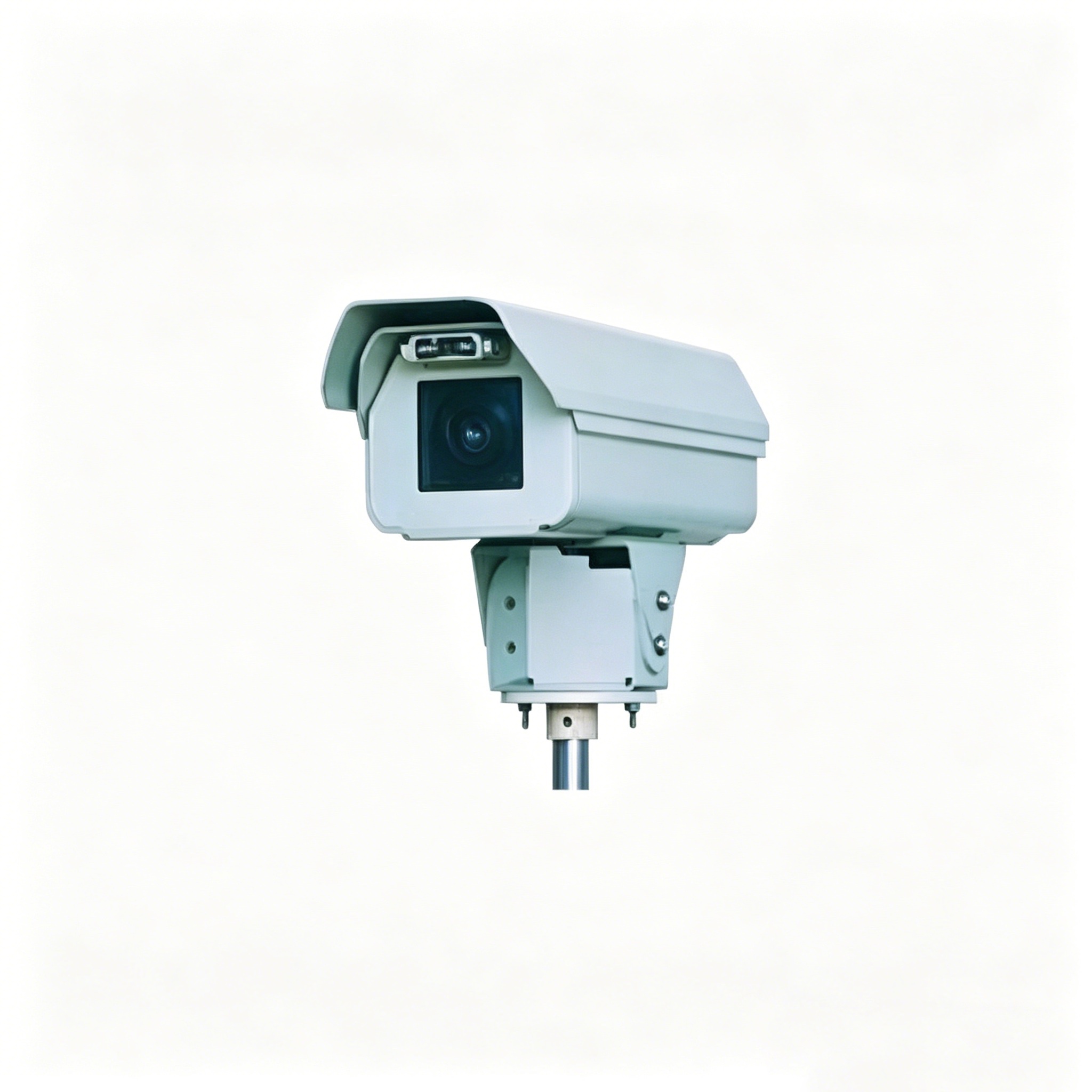

Camera options: Available in 2types：Guntype color industrial camera and integrated color industrial camera
Camera performance: Both camera types are protected by dedicated mechanisms, offering high temperature resistance, long life, reliable operation, high resolution, and distortionfree continuous operation
Pantilt control: Cameras are mounted on pantilts, supporting both onsite and remote control via the field control box or remote controller
Multiimage monitoring: 2–4 surveillance feeds can be switched to a single monitor using a video switcher or picture divider
Camera quality: Offersstable performance and high resolution
Customizable lenses: Can be equipped with electric threevariable lenses to adjust aperture, focal length, and magnification onsite or remotely for optimal imaging
Pantilt types: Two installation modes are available – fixed pantilt and electric pantilt

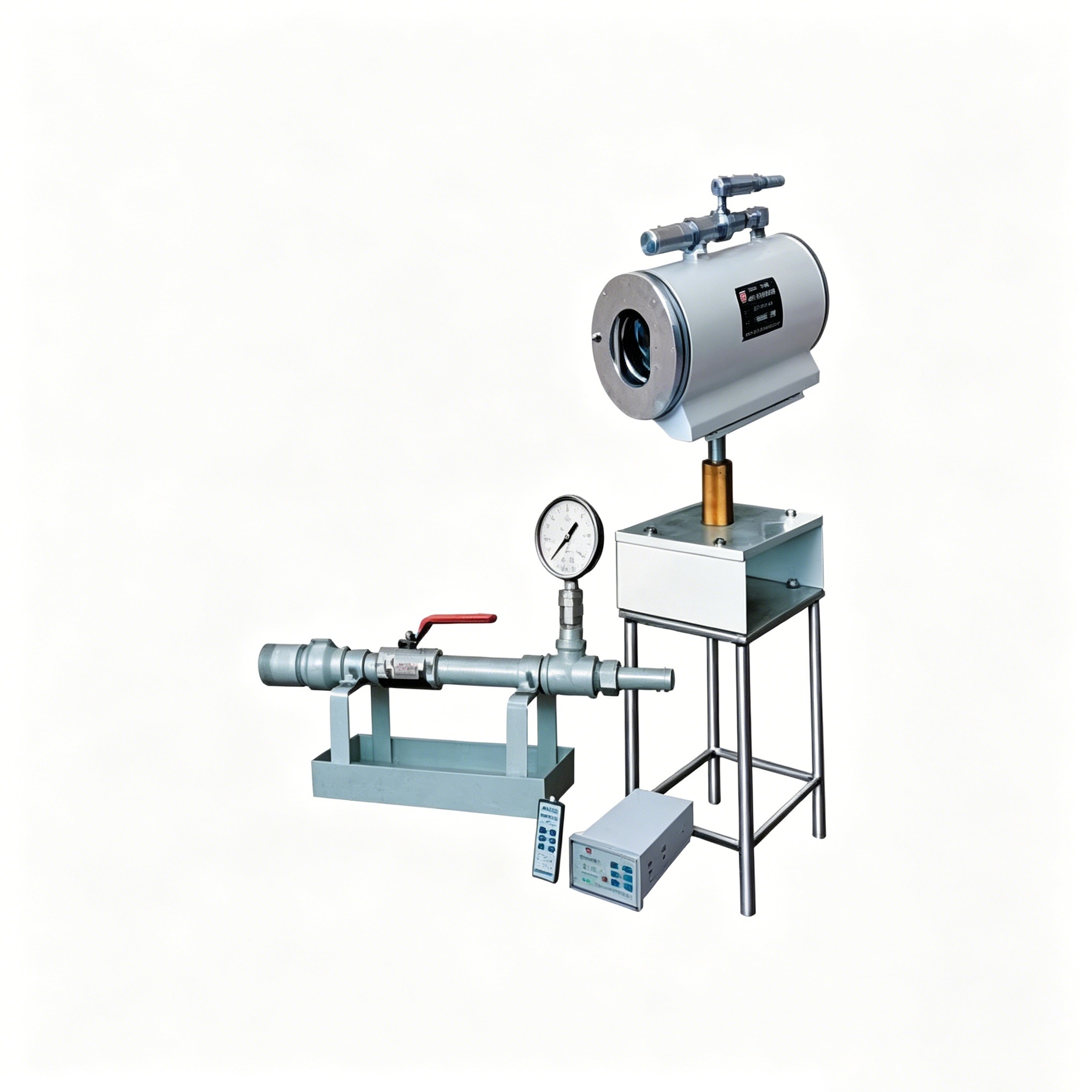

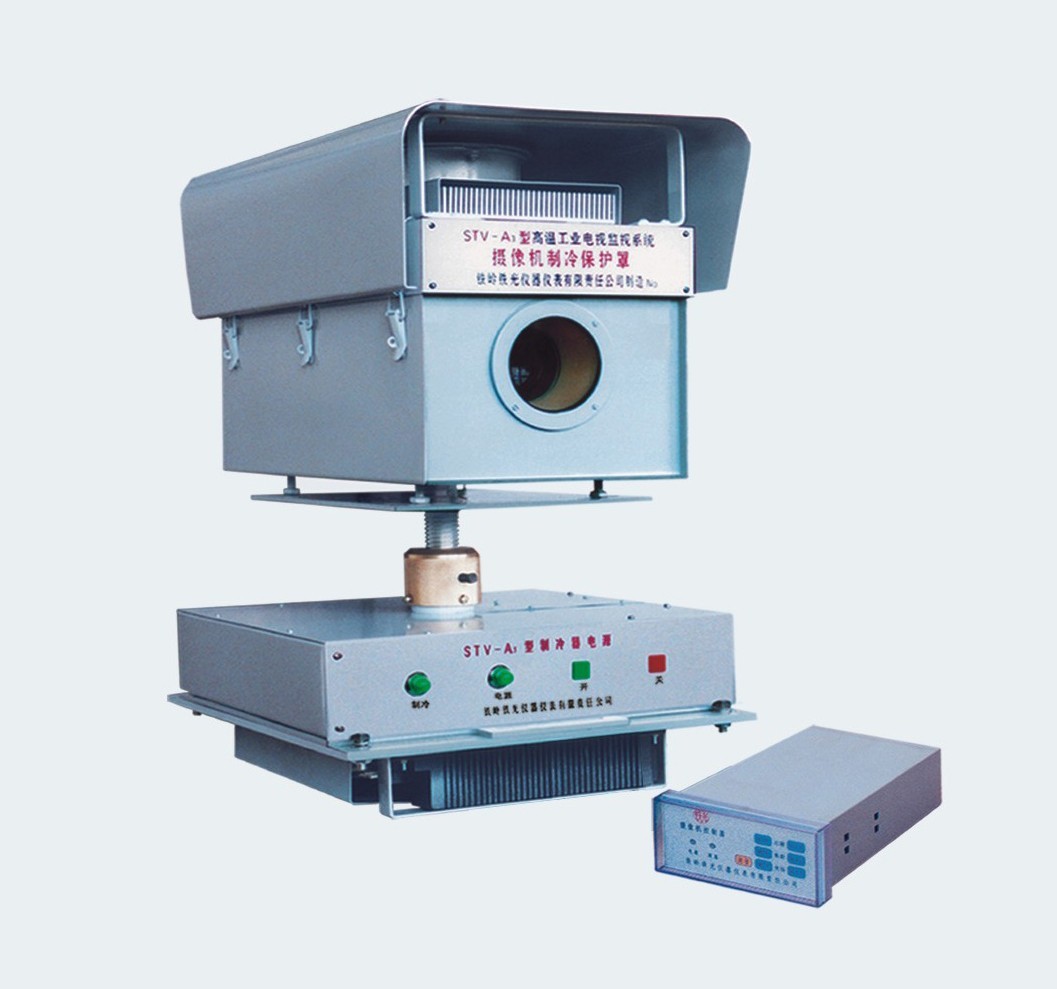

Cooling protection: Multiple cooling technologies are offered to suit different operating conditions and ensure stable operation in hightemperature environments
Overtemperature alarm: Features an audiovisual alarm that triggers automatically when the camera temperature exceeds the preset threshold, preventing overheating damage
Light shield solution: A fully enclosed light shield is available for environments with significant daynight light changes or short installation distances It seals the camera, includes an LED light source for constant lighting, and uses internal mirrors to extend the effective distance between the camera and water level gauge, ensuring clear images
Easy maintenance: The light shield has a movable, extendable, detachable mounting frame for convenient replacement of water level gauge window components
Modular configurations: The system offers serialized products with options like remote control, explosionproof function, and automatic alarm to match specific site conditions
