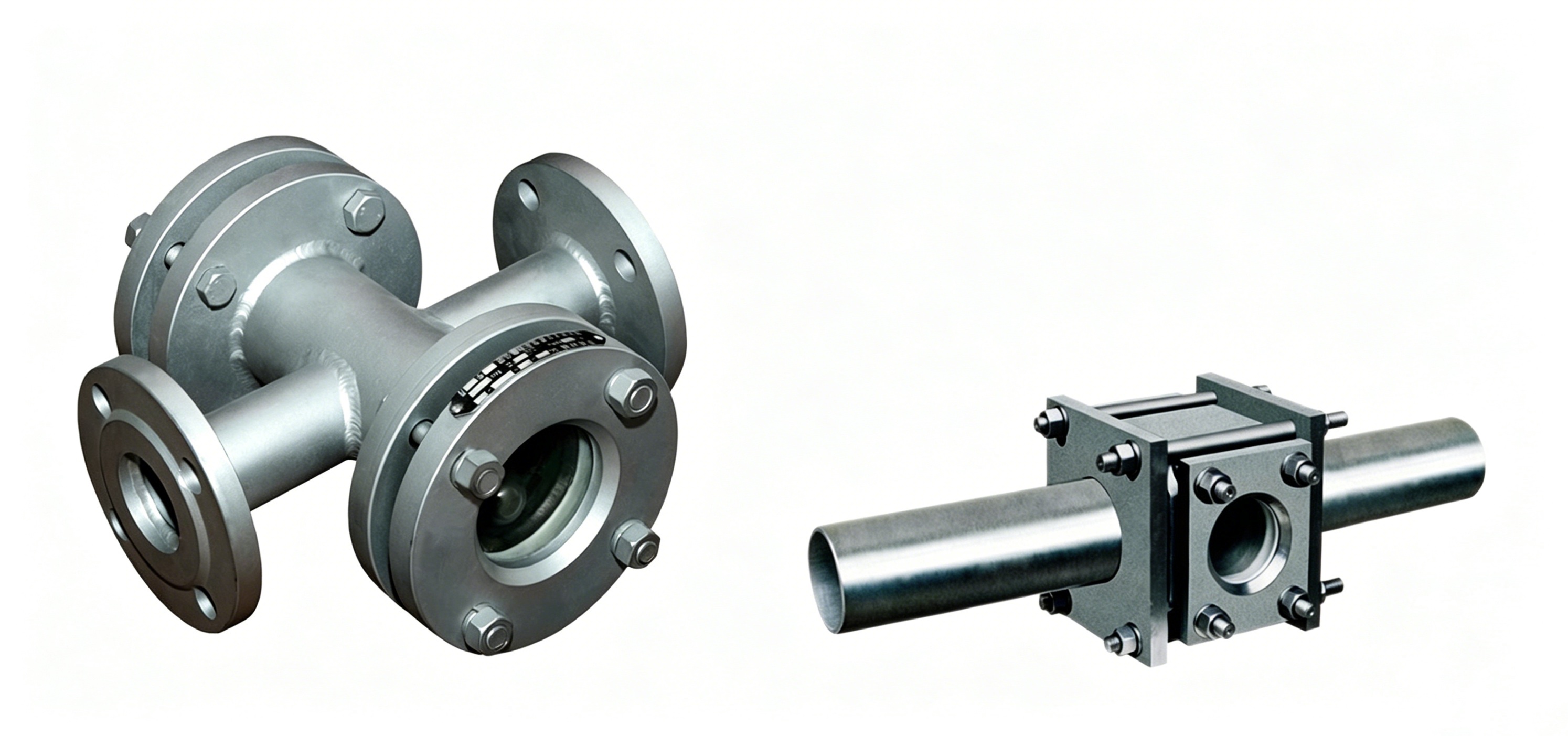

The SG Type Pipeline Sight Glass is a primary direct reading instrument for monitoring and observing medium flow inside pipelines
It is installed on pipelines via flange or thread connection
The flow condition of internal medium can be clearly and directly observed through the sight glass
As an essential accessory for industrial piping systems, it is widely applied in petrochemical, power, pharmaceutical, environmental protection and other industries.
It enables real time observation of liquid flow and reaction status to prevent production accidents
SG Type Pipeline & Vessel Sight Glass features simple installation and convenient operation. For dark working conditions or low visibility transparent liquid, a floating ball is equipped inside the chamber to reflect flow status intuitively and accurately
It complies with HGS standards issued by China Ministry of Chemical Industry. Custom fabrication is available according to special customer specifications
Design Pressure (MPa): 0.6, 1.0, 1.6, 2.0, 2.5
Structure No.: 1、2、3
Nominal Diameter: DN20～DN150
Material: Carbon Steel (Ⅰ), Stainless Steel (Ⅱ), High purity Aluminum
