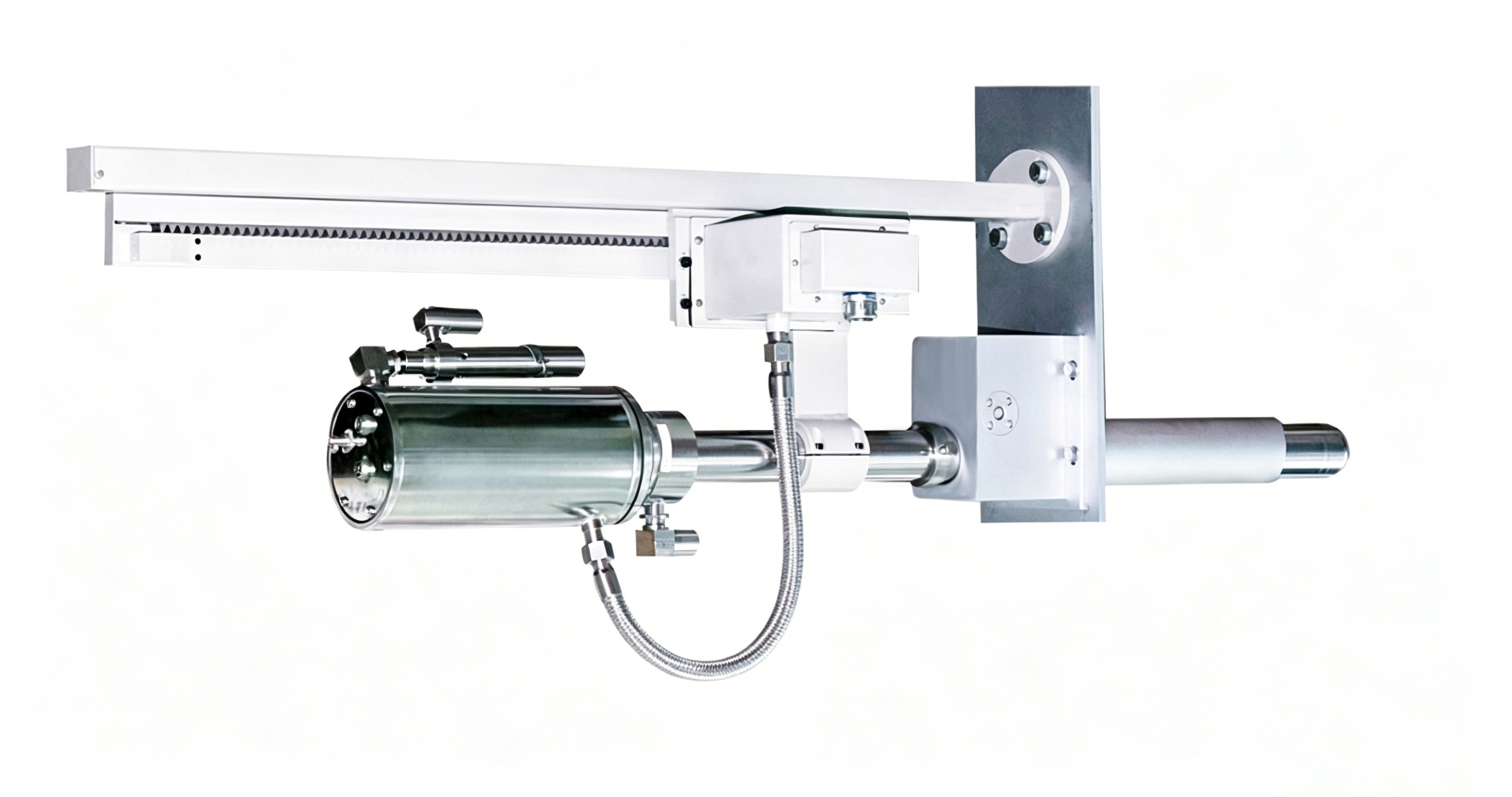

FTV type furnace flame monitoring device

• Observe the field of view: 50°, 90°, 105°, 120°
• Camera Angle: 0° (direct view), 45°,60°
• Working environment of the cover: -40°C~70°C
• Lens heat resistance temperature: ≤2300°C
• Wind source parameters required for the device:

-Air source pressure≥0.3MPa;

-Air source flow≥0.3m3/min;

-Wind-warm syndrome≤40°C,

-Dust particle size≤10um;

-Oil content≤10mg/m3;

• Automatic exit conditions:

When the wind pressure of the periscope protection air inlet is lower than 0.04MPa, the transmission system automatically exits the work site

When the temperature inside the protective cover is higher than 70°C, the transmission system automatically exits the work site

• Machine weight: 43.5kg (on-site probe part)
• Installation method: Welding
• Working power supply: Rated 220V,50Hz, 300W
• Advance and retreat mode: Electric advance and retreat
