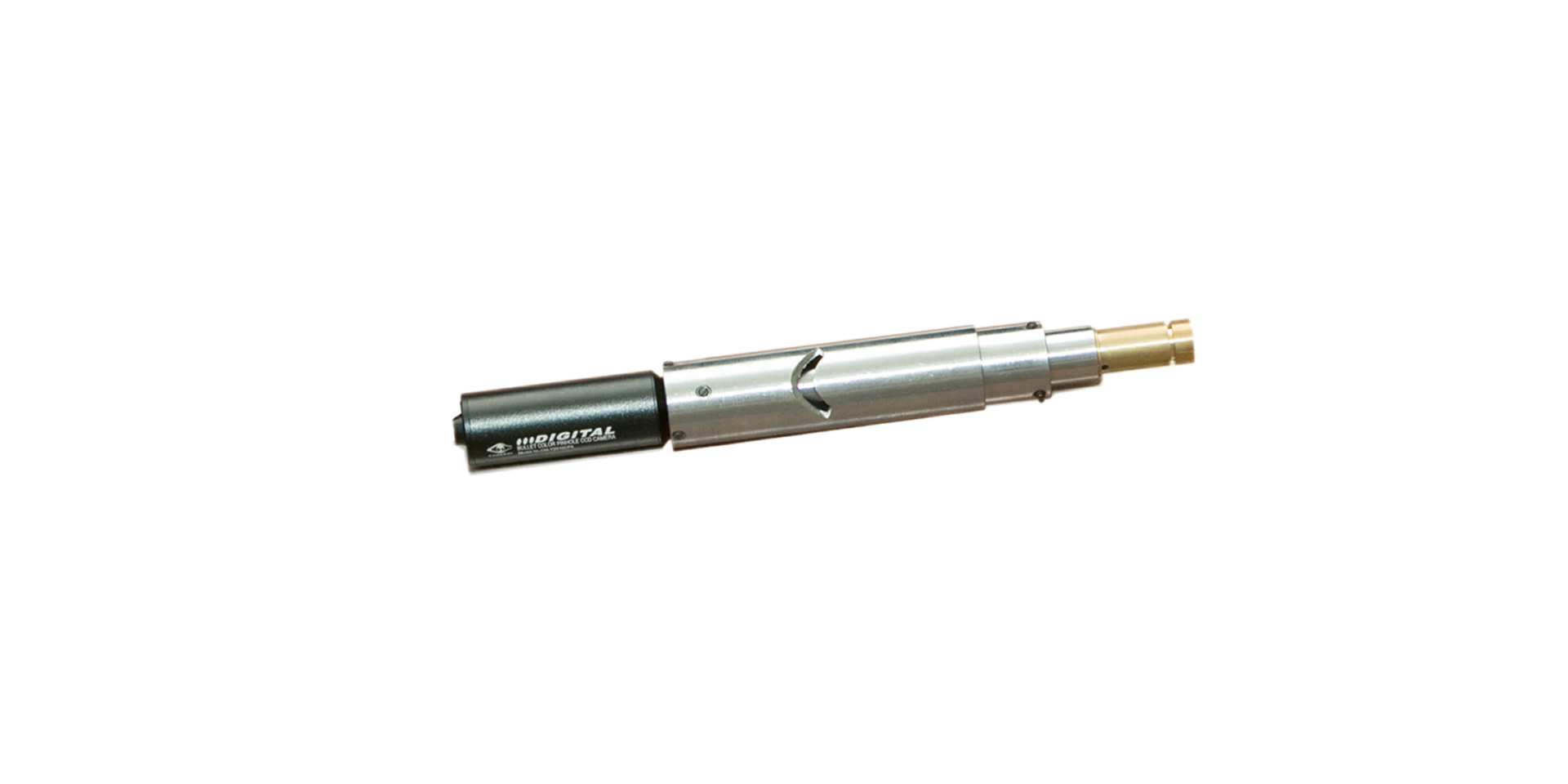

FDTV type miniature periscope system

• Observation field range: 90°
• Submersible tube working environment temperature: lessthan 1600 ℃
• Wind source parameters required by the device

Wind pressure is greater than or equal to 2KPa, wind source flow rate is greater than orequal to 300m3/h, wind temperature is less than or equal to 40 C, dust particle size is lessthan or equal to 10um, oil content is less than or equal to 10mg/m3;

• Working power supply: DC12V,130mA
• The FDTV type miniature periscope system is a color industrial television monitoring system that inserts the lens from beside the bumner intothe furnace interior to monior the ignition and combustion process of individual burners
• Allows operators to see real images of cach bumer's ig-nition process on the monior screen in the control room
• This productis suitable for monitoring ignition systems in power station boilers and otherindustrial kilns
